一、目标
- 搭建夜莺6.5.0系统
- 部署categraf采集脚本实现云主机数据上报
- 增加监控分类，包括linux云主机、redis、mysql、mongodb、opentsdb等
- 增加告警配置
二、搭建夜莺6.5.0系统
准备1台云主机，2C4G50GB
做好系统参数优化
登录服务器192.168.124.145
cd /opt/
mkdir n9e
cd n9e
wget https://download.flashcat.cloud/n9e-v6.5.0-linux-amd64.tar.gz
tar xzvf n9e-v6.5.0-linux-amd64.tar.gz
cd docker
cd compose-bridge
docker-compose up -d然后记得删除/opt/n9e/initsql文件夹
rm -rvf /opt/n9e/initsql三、部署categraf采集脚本实现云主机数据上报
mkdir -p /opt/categraf
cd /opt/categraf
wget https://download.flashcat.cloud/categraf-v0.3.39-linux-amd64.tar.gz
tar xzvf categraf-v0.3.39-linux-amd64.tar.gz
cat <<'EOF'> /opt/categraf/conf/config.toml
[global]
# whetherr print configs
print_configs = false
# add label(agent_hostname) to series
# "" -> auto detect hostname
# "xx" -> use specified string xx
# "$hostname" -> auto detect hostname
# "$ip" -> auto detect ip
# "$hostname-$ip" -> auto detect hostname and ip to replace the vars
hostname = "$hostname-$ip"
# will not add label(agent_hostname) if true
omit_hostname = false
# s | ms
precision = "ms"
# global collect interval
interval = 15
# input provider settings; optional: local / http
providers = ["local"]
disable_usage_report = true
# [global.labels]
# region = "shanghai"
# env = "localhost"
[writer_opt]
batch = 1000
chan_size = 1000000
[[writers]]
url = "http://192.168.124.145:17000/prometheus/v1/write"
# Basic auth username
basic_auth_user = ""
# Basic auth password
basic_auth_pass = ""
## Optional headers
# headers = ["X-From", "categraf", "X-Xyz", "abc"]
# timeout settings, unit: ms
timeout = 5000
dial_timeout = 2500
max_idle_conns_per_host = 100
[http]
enable = false
address = ":9100"
print_access = false
run_mode = "release"
[ibex]
enable = false
## ibex flush interval
interval = "1000ms"
## n9e ibex server rpc address
Servers = ["192.168.124.145:20090"]
## temp script dir
metaDir = "./meta"
[http_provider]
# HttpRemoteProvider插件，通过Http请求的方式获取Categraf的配置
# 通过设置global中的provider为HttpRemoteProvider启用
# example request: GET /categraf/configs?agent=categraf&host=machine1 HTTP/1.1
# struct of response
# type httpRemoteProviderResponse struct {
# // version is signature/md5 of current Config, server side should deal with the Version calculate
# Version string `json:"version"`
#
# // ConfigMap (InputName -> Config), if version is identical, server side can set Config to nil
# Configs map[string]cfg.ConfigWithFormat `json:"configs"`
# }
# type ConfigWithFormat struct {
# Config string `json:"config"`
# Format ConfigFormat `json:"format"`
# }
# example response:
# {
# "version": "111",
# "configs": {
# "mysql": {
# "config": "# # collect interval\n# interval = 15\n\n[[ instances ]]\naddress = \"172.33.44.55:3306\"\nusername = \"111\"\npassword = \"2222\"\nlabels = { instance = \"mysql2\"}\nextra_innodb_metrics =true",
# "format": "toml"
# }
# }
#}
#
# remote url
remote_url = "http://localhost:20000/categraf/configs"
# header settings when request config from remote
# headers = ["X-From", "categraf", "X-Xyz", "abc"]
# http basic auth config
# basic_auth_user = ""
# basic_auth_pass = ""
# http timeout in seconds
timeout = 5
# reload interval in seconds
reload_interval = 120
## Optional TLS Config
# use_tls = false
# tls_ca = "/etc/categraf/ca.pem"
# tls_cert = "/etc/categraf/cert.pem"
# tls_key = "/etc/categraf/key.pem"
## Use TLS but skip chain & host verification
# insecure_skip_verify = false
#
[heartbeat]
enable = true
# report os version cpu.util mem.util metadata
url = "http://192.168.124.145:17000/v1/n9e/heartbeat"
# interval, unit: s
interval = 10
# Basic auth username
basic_auth_user = ""
# Basic auth password
basic_auth_pass = ""
## Optional headers
# headers = ["X-From", "categraf", "X-Xyz", "abc"]
# timeout settings, unit: ms
timeout = 5000
dial_timeout = 2500
max_idle_conns_per_host = 100
EOF

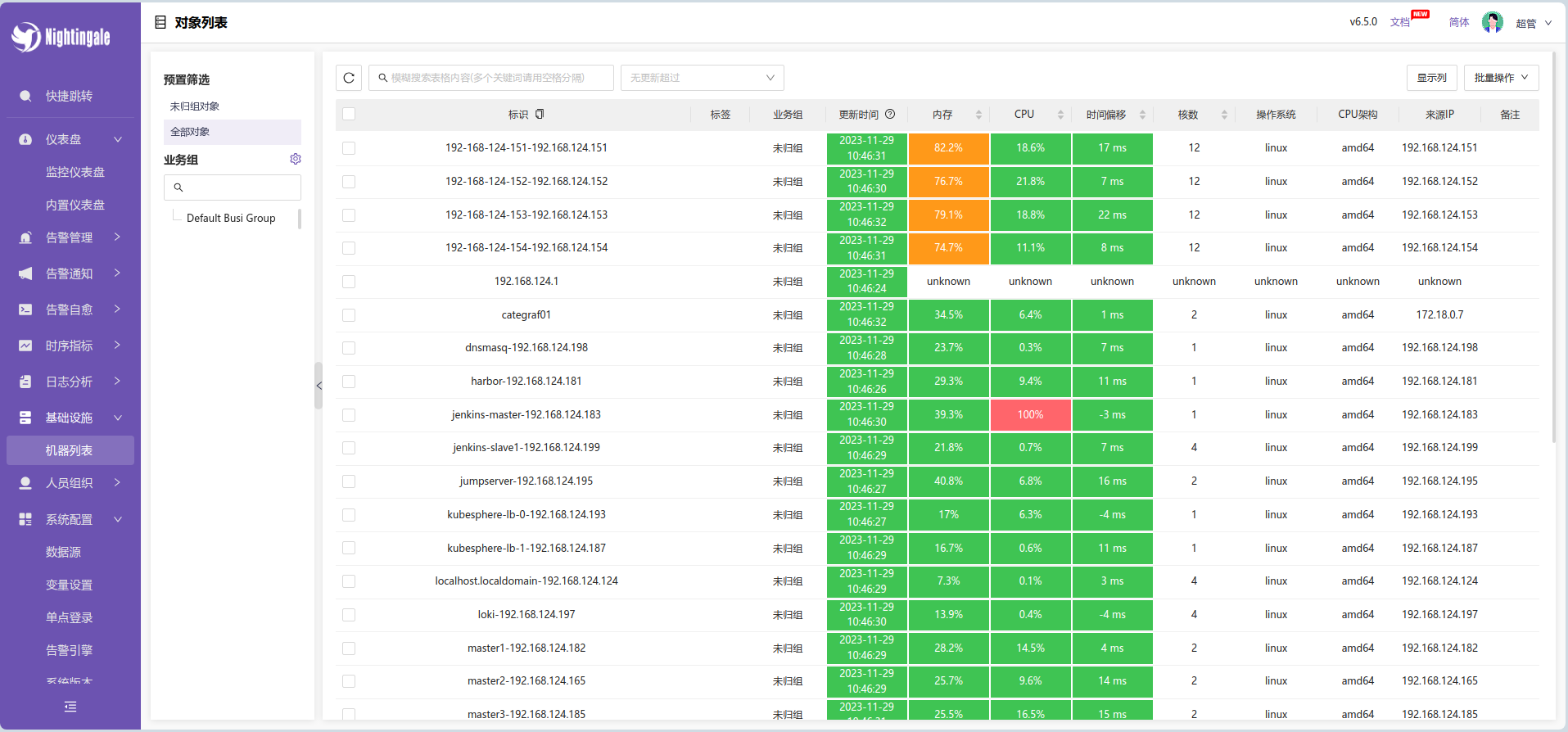

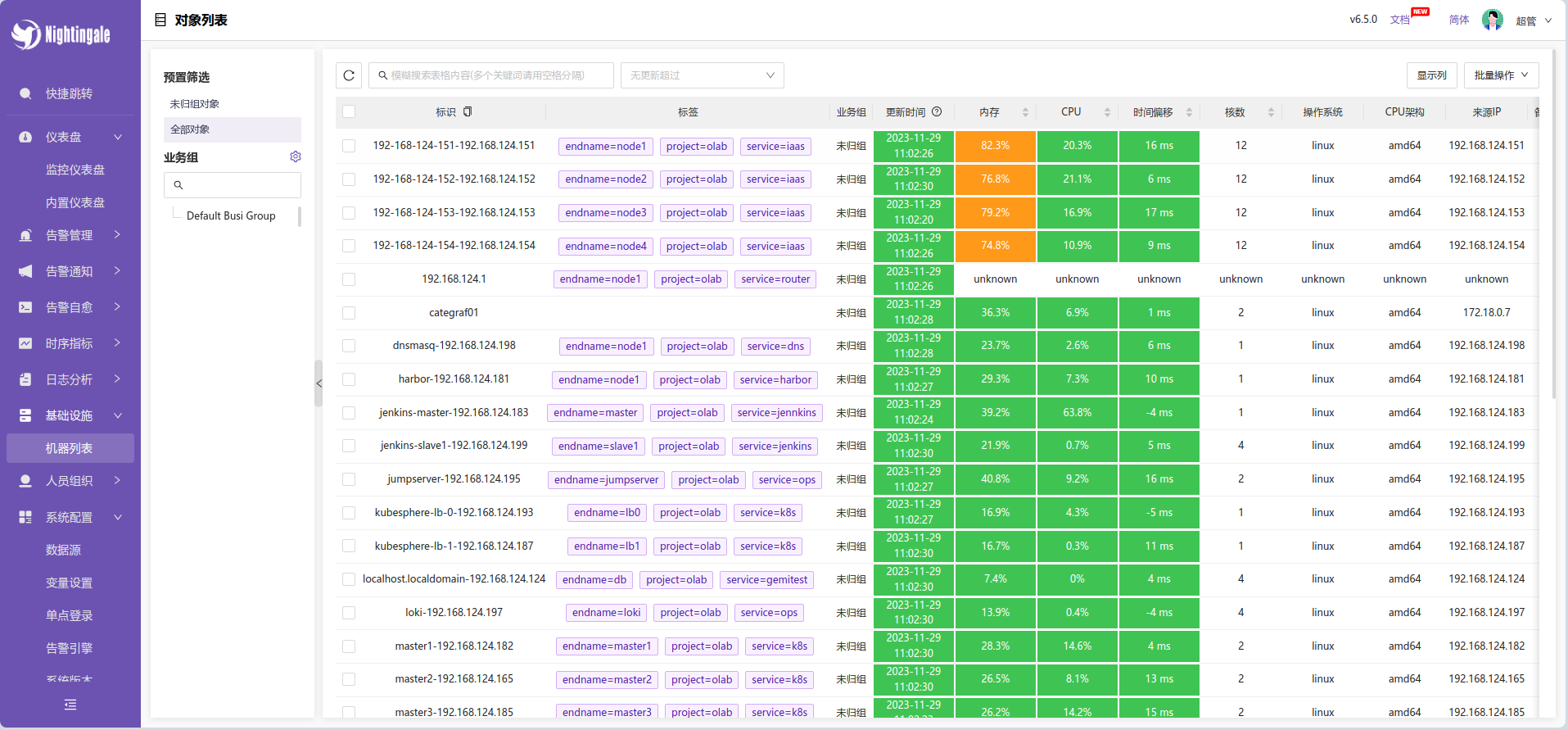

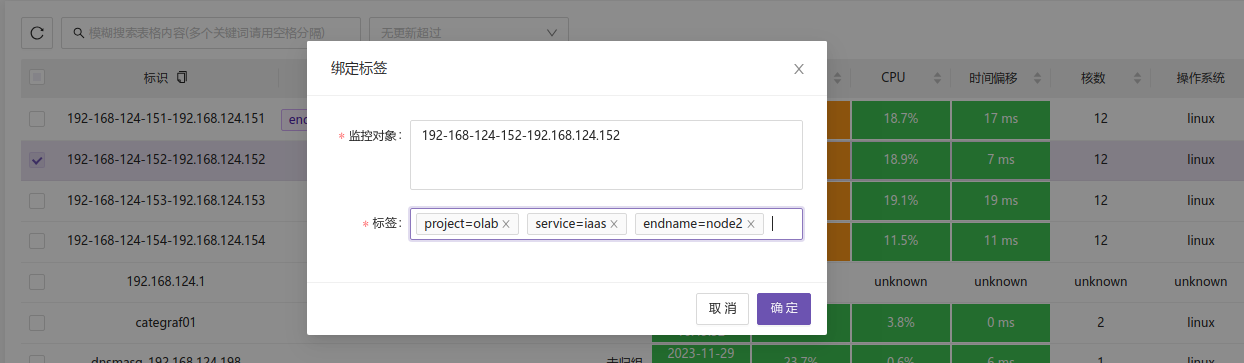

打标签

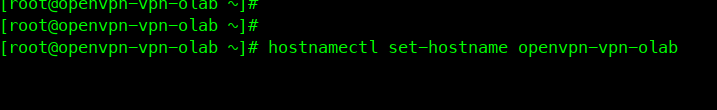

修改主机名

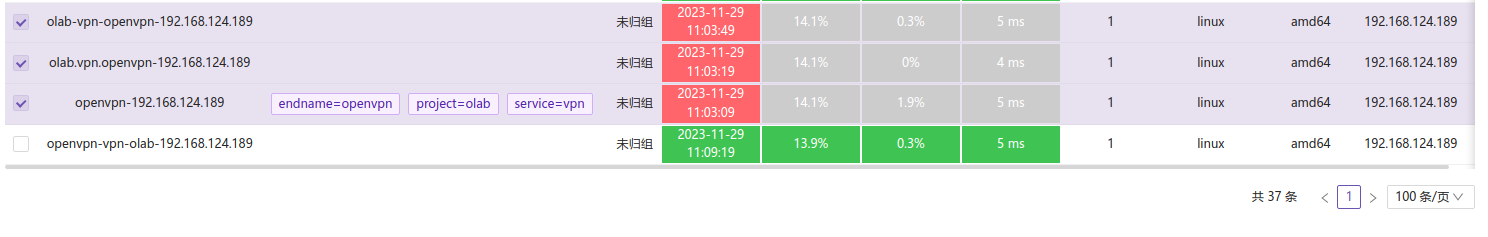

修改后，注意categraf上报的数据会有相应变化，需要重新打标签了。
四、增加监控分类，包括linux云主机、redis、mysql、mongodb、opentsdb等

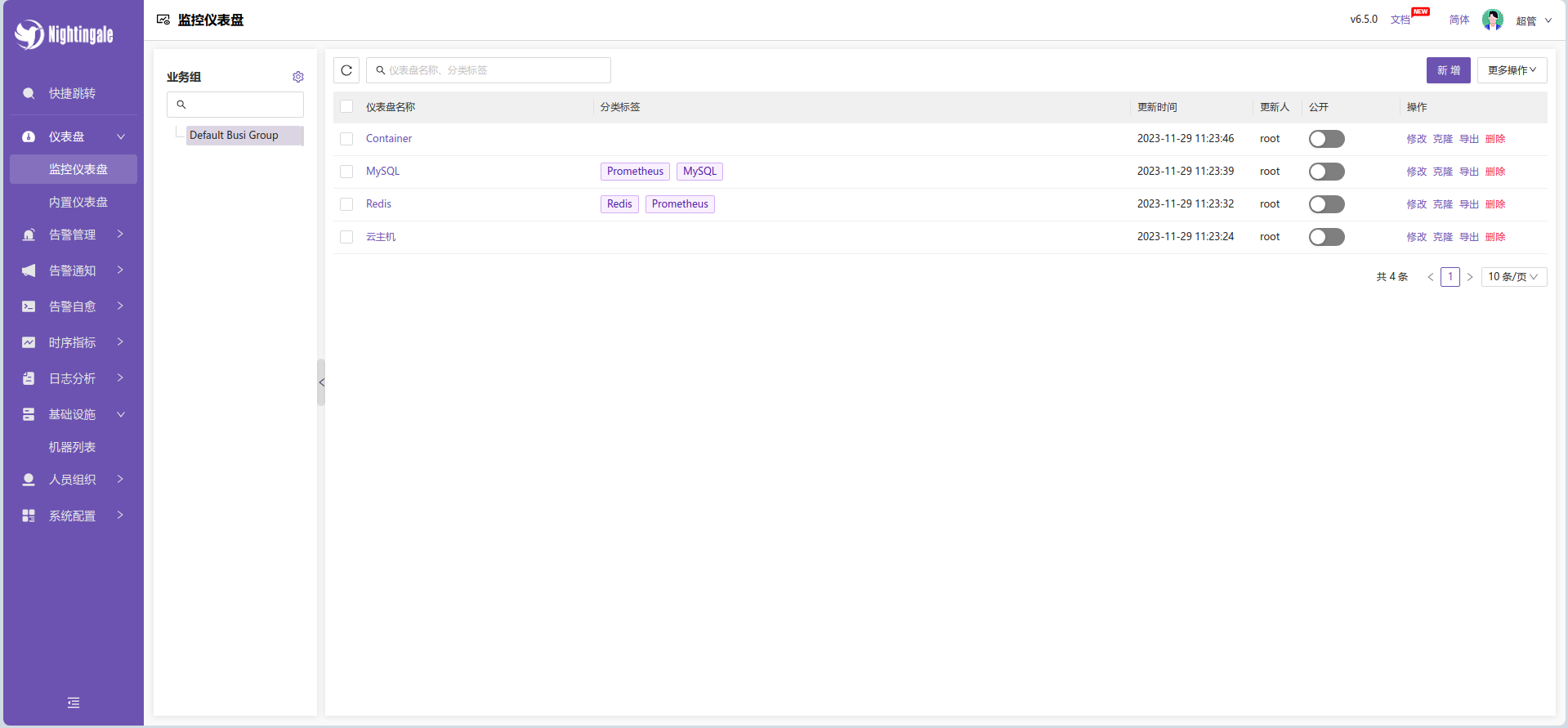

云主机仪表盘
{
"name": "云主机",
"tags": "",
"ident": "",
"configs": {
"links": [
{
"targetBlank": true,
"title": "n9e",
"url": "https://n9e.github.io/"
},
{
"targetBlank": true,
"title": "author",
"url": "http://flashcat.cloud/"
}
],
"panels": [
{
"collapsed": true,
"id": "2b2de3d1-65c8-4c39-9bea-02b754e0d751",
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 0,
"i": "2b2de3d1-65c8-4c39-9bea-02b754e0d751",
"isResizable": false
},
"name": "单机概况",
"type": "row",
"panels": []
},
{
"type": "barGauge",
"id": "deec579b-3090-4344-a9a6-c1455c4a8e50",
"layout": {
"h": 3,
"w": 6,
"x": 0,
"y": 1,
"i": "deec579b-3090-4344-a9a6-c1455c4a8e50",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "system_uptime{project=~\"$project\",service=~\"$service\",endname=~\"$endname\"}/3600/24",
"refId": "A",
"legend": "{{project}}-{{service}}-{{endname}}-uptime"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "启动时长（单位：天）",
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "desc"
},
"options": {
"standardOptions": {}
}
},
{
"type": "barGauge",
"id": "7a7bd5db-d12e-49f0-92a8-15958e99ee54",
"layout": {
"h": 3,
"w": 6,
"x": 6,
"y": 1,
"i": "7a7bd5db-d12e-49f0-92a8-15958e99ee54",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "100-cpu_usage_idle{project=~\"$project\", service=~\"$service\", endname=~\"$endname\", cpu=\"cpu-total\"}",
"refId": "A",
"legend": "{{project}}-{{service}}-{{endname}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "CPU使用率",
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "desc"
},
"options": {
"standardOptions": {}
}
},
{
"type": "barGauge",
"id": "8a814265-54ad-419c-8cb7-e1f84a242de0",
"layout": {
"h": 3,
"w": 6,
"x": 12,
"y": 1,
"i": "8a814265-54ad-419c-8cb7-e1f84a242de0",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mem_used_percent{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "A",
"legend": "{{project}}-{{service}}-{{endname}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "内存使用率",
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "desc"
},
"options": {
"standardOptions": {}
}
},
{
"type": "barGauge",
"id": "d7d11972-5c5b-4bc6-98f8-bbbe9f018896",
"layout": {
"h": 3,
"w": 3,
"x": 18,
"y": 1,
"i": "d7d11972-5c5b-4bc6-98f8-bbbe9f018896",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "linux_sysctl_fs_file_nr{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}/linux_sysctl_fs_file_max{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}*100",
"refId": "A",
"legend": "{{project}}-{{service}}-{{endname}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "FD使用率",
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "desc"
},
"options": {
"standardOptions": {}
}
},
{
"type": "barGauge",
"id": "209d3aba-5e02-4b8f-a364-65f20ba92a2c",
"layout": {
"h": 3,
"w": 3,
"x": 21,
"y": 1,
"i": "209d3aba-5e02-4b8f-a364-65f20ba92a2c",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mem_swap_total{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}-mem_swap_free{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "SWAP使用",
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "desc"
},
"options": {
"standardOptions": {}
}
},
{
"type": "barGauge",
"id": "b3c5dd9d-e82a-4b15-8b23-c510e2bee152",
"layout": {
"h": 3,
"w": 8,
"x": 0,
"y": 4,
"i": "b3c5dd9d-e82a-4b15-8b23-c510e2bee152",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "disk_used_percent{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"instant": false,
"legend": "{{project}}-{{service}}-{{endname}}-{{path}}",
"refId": "A",
"step": 60
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "磁盘使用率",
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "desc"
},
"options": {
"standardOptions": {}
}
},
{
"type": "barGauge",
"id": "0de74cd9-cc74-4a96-bcb2-05d3a8bde2ea",
"layout": {
"h": 3,
"w": 8,
"x": 8,
"y": 4,
"i": "0de74cd9-cc74-4a96-bcb2-05d3a8bde2ea",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "disk_inodes_used{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}/disk_inodes_total{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"instant": true,
"legend": "{{project}}-{{service}}-{{endname}}-{{path}}",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "inode使用率",
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "desc"
},
"options": {
"standardOptions": {}
}
},
{
"type": "timeseries",
"id": "59afa167-434d-496c-a3ef-ceff6db7c1f6",
"layout": {
"h": 3,
"w": 8,
"x": 16,
"y": 4,
"i": "59afa167-434d-496c-a3ef-ceff6db7c1f6",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(diskio_io_time{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])/10",
"legend": "{{project}}-{{service}}-{{endname}}-{{name}}",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "io_util",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "percent",
"decimals": 1
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"collapsed": true,
"id": "aabb8263-1a9b-43fb-bee1-6c532f5012a3",
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 7,
"i": "aabb8263-1a9b-43fb-bee1-6c532f5012a3",
"isResizable": false
},
"name": "系统指标",
"type": "row",
"panels": []
},
{
"type": "timeseries",
"id": "1b4da538-29d4-4c58-b3f4-773fabb8616c",
"layout": {
"h": 4,
"w": 8,
"x": 0,
"y": 8,
"i": "1b4da538-29d4-4c58-b3f4-773fabb8616c",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "processes_total{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "A",
"legend": "{{project}}-{{service}}-{{endname}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "进程总数",
"options": {
"tooltip": {
"mode": "all",
"sort": "none"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"min": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
},
{
"color": "#fa2a05",
"value": 2000
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "aa7adae0-ae3b-4e28-a8ce-801c65961552",
"layout": {
"h": 4,
"w": 8,
"x": 8,
"y": 8,
"i": "aa7adae0-ae3b-4e28-a8ce-801c65961552",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(kernel_context_switches{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-context_switches",
"refId": "A"
},
{
"expr": "rate(kernel_interrupts{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-kernel_interrupts",
"refId": "B"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "上下文切换/中断",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"min": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "71e22f58-5b9a-4604-bca8-55bcef59b5fe",
"layout": {
"h": 4,
"w": 8,
"x": 16,
"y": 8,
"i": "71e22f58-5b9a-4604-bca8-55bcef59b5fe",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "kernel_entropy_avail{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"legend": "{{project}}-{{service}}-{{endname}}-entropy_avail",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "熵池大小",
"options": {
"tooltip": {
"mode": "all",
"sort": "none"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
},
{
"color": "#f50505",
"value": 100
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"collapsed": true,
"id": "10f34f8f-f94d-4a28-9551-16e6667e3833",
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 12,
"i": "10f34f8f-f94d-4a28-9551-16e6667e3833",
"isResizable": false
},
"name": "CPU",
"type": "row",
"panels": []
},
{
"type": "timeseries",
"id": "043c26de-d19f-4fe8-a615-2b7c10ceb828",
"layout": {
"h": 4,
"w": 8,
"x": 0,
"y": 13,
"i": "043c26de-d19f-4fe8-a615-2b7c10ceb828",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "cpu_usage_guest{project=~\"$project\", service=~\"$service\",endname=~\"$endname\",cpu=\"cpu-total\"}",
"legend": "{{project}}-{{service}}-{{endname}}-cpu_usage_guest",
"refId": "A",
"instant": false
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "CPU使用率详情 cpu_usage_guest",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "percent"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "1559d880-7e26-4e42-9427-4e55fb6f67be",
"layout": {
"h": 4,
"w": 8,
"x": 8,
"y": 13,
"i": "1559d880-7e26-4e42-9427-4e55fb6f67be",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "cpu_usage_idle{project=~\"$project\", service=~\"$service\", endname=~\"$endname\",cpu=\"cpu-total\"}",
"legend": "{{project}}-{{service}}-{{endname}}",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "CPU空闲率",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "percent",
"min": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
},
{
"color": "#f20202",
"value": 10
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "a420ce25-6968-47f8-8335-60cde70fd062",
"layout": {
"h": 4,
"w": 8,
"x": 16,
"y": 13,
"i": "a420ce25-6968-47f8-8335-60cde70fd062",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "system_load1{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "B",
"legend": "{{project}}-{{service}}-{{endname}}-load1"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "CPU负载（1分钟）",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "59f30e00-2db5-4d20-91d2-218d81c40ba8",
"layout": {
"h": 4,
"w": 8,
"x": 0,
"y": 17,
"i": "894bba23-cb82-4a58-b461-411b05899155",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "cpu_usage_iowait{project=~\"$project\", service=~\"$service\", endname=~\"$endname\",cpu=\"cpu-total\"}",
"legend": "{{project}}-{{service}}-{{endname}}-cpu_usage_iowait",
"refId": "B"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "CPU使用率详情 cpu_usage_iowait",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "percent"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "ae712126-2227-4341-941c-151638884734",
"layout": {
"h": 4,
"w": 8,
"x": 8,
"y": 17,
"i": "3c151a5a-f6b3-4a2b-9428-2b03465016ae",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "cpu_usage_user{project=~\"$project\", service=~\"$service\", endname=~\"$endname\",cpu=\"cpu-total\"}",
"legend": "{{project}}-{{service}}-{{endname}}-cpu_usage_user",
"refId": "C"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "CPU使用率详情 cpu_usage_user",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "percent"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "3ea75acc-e8df-4df8-b04c-ac615daef565",
"layout": {
"h": 4,
"w": 8,
"x": 16,
"y": 17,
"i": "d6013ac3-76ba-4e97-bffb-56dab0a1bd13",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "system_load5{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "C",
"legend": "{{project}}-{{service}}-{{endname}}-load5"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "CPU负载（5分钟）",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "9444aac9-8bcc-435a-8d11-d7765be729d2",
"layout": {
"h": 4,
"w": 8,
"x": 0,
"y": 21,
"i": "5ff83164-2616-491a-aba6-8b5cba317b33",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "cpu_usage_system{project=~\"$project\", service=~\"$service\", endname=~\"$endname\",cpu=\"cpu-total\"}",
"legend": "{{project}}-{{service}}-{{endname}}-cpu_usage_system",
"refId": "D"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "CPU使用率详情 cpu_usage_system",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "percent"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "280c2b1e-34c6-45c6-a399-6a8c7f58092e",
"layout": {
"h": 4,
"w": 8,
"x": 8,
"y": 21,
"i": "24fe3080-f627-4a5e-92d8-d0f35f460f81",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "cpu_usage_irq{project=~\"$project\", service=~\"$service\", endname=~\"$endname\",cpu=\"cpu-total\"}",
"legend": "{{project}}-{{service}}-{{endname}}-cpu_usage_irq",
"refId": "E"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "CPU使用率详情 cpu_usage_irq",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "percent"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "ecb55bc3-d065-4151-bec8-1a2485b40248",
"layout": {
"h": 4,
"w": 8,
"x": 16,
"y": 21,
"i": "b5ce1efd-8ab3-47b9-a637-98021e31dac3",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "system_load15{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "A",
"legend": "{{project}}-{{service}}-{{endname}}-load15"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "CPU负载（15分钟）",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "18a8c25a-a54a-4365-bafd-49aaec1a9f2a",
"layout": {
"h": 4,
"w": 8,
"x": 0,
"y": 25,
"i": "16a82fb1-dd81-4d1e-b802-fc5693c9aec3",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "cpu_usage_softirq{project=~\"$project\", service=~\"$service\", endname=~\"$endname\",cpu=\"cpu-total\"}",
"legend": "{{project}}-{{service}}-{{endname}}-cpu_usage_softirq",
"refId": "F"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "CPU使用率详情 cpu_usage_softirq",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "percent"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "92cce2c9-9e22-431a-9ce6-ecac64f1ac23",
"layout": {
"h": 4,
"w": 8,
"x": 8,
"y": 25,
"i": "417c335f-aa6d-470c-ab74-368eeca535e6",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "cpu_usage_nice{project=~\"$project\", service=~\"$service\", endname=~\"$endname\",cpu=\"cpu-total\"}",
"legend": "{{project}}-{{service}}-{{endname}}-cpu_usage_nice",
"refId": "G"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "CPU使用率详情 cpu_usage_nice",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "percent"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "fee9f9a0-75ce-44f0-84b0-a6eda9d4d326",
"layout": {
"h": 4,
"w": 8,
"x": 16,
"y": 25,
"i": "331a355a-9d22-4273-8e28-24d701845649",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "cpu_usage_steal{project=~\"$project\", service=~\"$service\", endname=~\"$endname\",cpu=\"cpu-total\"}*100",
"legend": "{{project}}-{{service}}-{{endname}}-cpu_usage_steal",
"refId": "H"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "CPU使用率详情 cpu_usage_steal",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "percent"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"collapsed": true,
"id": "b7a3c99f-a796-4b76-89b5-cbddd566f91c",
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 29,
"i": "b7a3c99f-a796-4b76-89b5-cbddd566f91c",
"isResizable": false
},
"name": "内存详情",
"type": "row",
"panels": []
},
{
"type": "timeseries",
"id": "239aacdf-1982-428b-b240-57f4ce7f946d",
"layout": {
"h": 4,
"w": 8,
"x": 0,
"y": 30,
"i": "239aacdf-1982-428b-b240-57f4ce7f946d",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mem_active{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "A",
"legend": "{{project}}-{{service}}-{{endname}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "用户态内存使用 mem_active",
"description": "内存指标可参考链接 [/PROC/MEMINFO之谜](http://linuxperf.com/?p=142) ",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"min": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "e125e256-1a0e-430e-9e59-b28a2de886f6",
"layout": {
"h": 4,
"w": 8,
"x": 8,
"y": 30,
"i": "9942ce5e-aead-47a6-aa4d-482ec2fa9bdd",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mem_cached{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "B",
"legend": "{{project}}-{{service}}-{{endname}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "用户态内存使用 mem_cached",
"description": "内存指标可参考链接 [/PROC/MEMINFO之谜](http://linuxperf.com/?p=142) ",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"min": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "015de2cb-0b89-47f7-9dae-53faa95b0697",
"layout": {
"h": 4,
"w": 8,
"x": 16,
"y": 30,
"i": "2523e8b2-c6e1-48c8-8822-56705d9e10bf",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mem_buffered{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "C",
"legend": "{{project}}-{{service}}-{{endname}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "用户态内存使用 mem_buffered",
"description": "内存指标可参考链接 [/PROC/MEMINFO之谜](http://linuxperf.com/?p=142) ",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"min": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "2476d0a7-b59e-448d-95d9-061d532b9a70",
"layout": {
"h": 4,
"w": 8,
"x": 0,
"y": 34,
"i": "a54737f0-1364-48f9-8d18-4f3a06eb7ed4",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mem_mapped{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "E",
"legend": "{{project}}-{{service}}-{{endname}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "用户态内存使用 mem_mapped",
"description": "内存指标可参考链接 [/PROC/MEMINFO之谜](http://linuxperf.com/?p=142) ",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"min": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "5652ef4e-2fd9-495c-a506-878f44715220",
"layout": {
"h": 4,
"w": 8,
"x": 8,
"y": 34,
"i": "f37487a5-6697-43d9-85ac-9837572f2020",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mem_inactive{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "D",
"legend": "{{project}}-{{service}}-{{endname}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "用户态内存使用 mem_inactive",
"description": "内存指标可参考链接 [/PROC/MEMINFO之谜](http://linuxperf.com/?p=142) ",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"min": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "e516600d-ebc9-4b36-93a7-c9598b77afcf",
"layout": {
"h": 4,
"w": 8,
"x": 16,
"y": 34,
"i": "3578a256-be81-4ab6-a389-70f55ee12eb2",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mem_shared{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "F",
"legend": "{{project}}-{{service}}-{{endname}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "用户态内存使用 mem_shared",
"description": "内存指标可参考链接 [/PROC/MEMINFO之谜](http://linuxperf.com/?p=142) ",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "00ed6e4d-c979-4938-a20e-56d42ca452cf",
"layout": {
"h": 4,
"w": 8,
"x": 0,
"y": 38,
"i": "00ed6e4d-c979-4938-a20e-56d42ca452cf",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mem_slab{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "A",
"legend": "{{project}}-{{service}}-{{endname}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "内核态内存使用 mem_slab",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"min": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "cf3def32-373d-4a8a-801d-135b425ac03f",
"layout": {
"h": 4,
"w": 8,
"x": 8,
"y": 38,
"i": "7f0c0262-183a-49c9-a7d4-650e1bc07e2b",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mem_sreclaimable{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "B",
"legend": "{{project}}-{{service}}-{{endname}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "内核态内存使用 mem_sreclaimable",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"min": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "bb5248ae-4c91-4f40-99d0-17a6baec4c9a",
"layout": {
"h": 4,
"w": 8,
"x": 16,
"y": 38,
"i": "e74c7fac-e34a-43cd-8c6d-e7140e121347",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mem_sunreclaim{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "C",
"legend": "{{project}}-{{service}}-{{endname}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "内核态内存使用 mem_sunreclaim",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"min": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "c85f2e3c-b4e7-49d4-9030-529e74f80df1",
"layout": {
"h": 4,
"w": 8,
"x": 0,
"y": 42,
"i": "c16b878c-9e65-4afe-8983-f525c19b1a91",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mem_vmalloc_used{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "D",
"legend": "{{project}}-{{service}}-{{endname}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "内核态内存使用 mem_vmalloc_used",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "e7a5bf53-6cb8-4a53-bc1a-0b85eed5e6b6",
"layout": {
"h": 4,
"w": 8,
"x": 8,
"y": 42,
"i": "2043f9fd-79a9-456e-b2ac-1290d2717080",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mem_vmalloc_chunk{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "E",
"legend": "{{project}}-{{service}}-{{endname}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "内核态内存使用 mem_vmalloc_chunk",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"collapsed": true,
"id": "842a8c48-0e93-40bf-8f28-1b2f837e5c19",
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 46,
"i": "842a8c48-0e93-40bf-8f28-1b2f837e5c19",
"isResizable": false
},
"name": "磁盘详情",
"type": "row",
"panels": []
},
{
"type": "barGauge",
"id": "bc894871-1c03-4d12-91be-6867f394a8a6",
"layout": {
"h": 6,
"w": 8,
"x": 0,
"y": 47,
"i": "bc894871-1c03-4d12-91be-6867f394a8a6",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "disk_free{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "A",
"legend": "{{project}}-{{service}}-{{endname}}-{{device}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "磁盘空间 disk_free",
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "asc"
},
"options": {
"standardOptions": {}
}
},
{
"type": "timeseries",
"id": "d825671f-7dc5-46a2-89dc-4fff084a3ae0",
"layout": {
"h": 4,
"w": 8,
"x": 8,
"y": 47,
"i": "d825671f-7dc5-46a2-89dc-4fff084a3ae0",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "linux_sysctl_fs_file_max{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "A",
"legend": "{{project}}-{{service}}-{{endname}}-linux_sysctl_fs_file_max"
},
{
"expr": "linux_sysctl_fs_file_nr{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "B",
"legend": "{{project}}-{{service}}-{{endname}}_linux_sysctl_fs_file_nr"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "fd使用",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "d27b522f-9c70-42f2-9e31-fed3816fd675",
"layout": {
"h": 4,
"w": 8,
"x": 16,
"y": 47,
"i": "d27b522f-9c70-42f2-9e31-fed3816fd675",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "disk_inodes_total{project=~\"$project\", service=~\"$service\", endname=~\"$endname\",path!~\"/var.*\"}",
"legend": "{{project}}-{{service}}-{{endname}}-{{device}}-disk_inodes_total",
"refId": "A"
},
{
"expr": "disk_inodes_used{project=~\"$project\", service=~\"$service\", endname=~\"$endname\",path!~\"/var.*\"}",
"legend": "{{project}}-{{service}}-{{endname}}-{{device}}-disk_inodes_used",
"refId": "B"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "inode",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "bbd1ebda-99f6-419c-90a5-5f84973976dd",
"layout": {
"h": 4,
"w": 8,
"x": 8,
"y": 51,
"i": "bbd1ebda-99f6-419c-90a5-5f84973976dd",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(diskio_read_bytes{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-{{name}}-read",
"refId": "A"
},
{
"expr": "rate(diskio_write_bytes{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-{{name}}-writes",
"refId": "B"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "IO吞吐量",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "bytesIEC",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "d6b45598-54c6-4b36-a896-0a7529ac21f8",
"layout": {
"h": 4,
"w": 8,
"x": 16,
"y": 51,
"i": "d6b45598-54c6-4b36-a896-0a7529ac21f8",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(diskio_write_time{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-{{name}}-write_time",
"refId": "A",
"instant": false
},
{
"expr": "rate(diskio_writes{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"refId": "B",
"legend": "{{project}}-{{service}}-{{endname}}-{{name}}-writes"
},
{
"expr": "rate(diskio_read_time{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"refId": "C",
"legend": "{{project}}-{{service}}-{{endname}}-{{name}}-read_time"
},
{
"expr": "rate(diskio_reads{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"refId": "D",
"legend": "{{project}}-{{service}}-{{endname}}-{{name}}-reads"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "iowait",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"min": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
},
"lineInterpolation": "linear"
}
},
{
"type": "barGauge",
"id": "03610e08-078d-4fd6-bde3-5dc754be0157",
"layout": {
"h": 6,
"w": 8,
"x": 0,
"y": 53,
"i": "201a3997-d509-4524-ad76-3a26b0340980",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "disk_total{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "A",
"legend": "{{project}}-{{service}}-{{endname}}-{{device}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "磁盘空间 disk_total",
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "desc"
},
"options": {
"standardOptions": {}
}
},
{
"type": "timeseries",
"id": "f645741e-c632-4685-b267-c7ad26b5c10e",
"layout": {
"h": 4,
"w": 8,
"x": 8,
"y": 55,
"i": "f645741e-c632-4685-b267-c7ad26b5c10e",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(diskio_reads{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-{{name}}-read",
"refId": "A"
},
{
"expr": "rate(diskio_writes{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-{{name}}-writes",
"refId": "B"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "IOPS",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "noraml",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "d4b1267d-b7cb-4c65-adaf-1723d807eb9f",
"layout": {
"h": 4,
"w": 8,
"x": 0,
"y": 59,
"i": "33d4320e-dbee-4641-937c-fd52eb9cc449",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "disk_used{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "C",
"legend": "{{project}}-{{service}}-{{endname}}-{{device}}-disk_used"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "磁盘空间 disk_used",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "bytesIEC",
"min": 0,
"decimals": null
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "cf81f399-f0e3-49bb-b72b-e04c6cb09c75",
"layout": {
"h": 4,
"w": 8,
"x": 8,
"y": 59,
"i": "b4874b02-8862-4f84-8e58-89612ccc0dd7",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "disk_used_percent{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "C",
"legend": "{{project}}-{{service}}-{{endname}}-{{device}}-disk_used"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "磁盘空间使用百分比",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "percent",
"min": 0,
"decimals": null
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"collapsed": true,
"id": "307152d2-708c-4736-98cf-08b886cbf7f2",
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 63,
"i": "307152d2-708c-4736-98cf-08b886cbf7f2",
"isResizable": false
},
"name": "网络详情",
"type": "row"
},
{
"type": "timeseries",
"id": "f2ee5d32-737c-4095-b6b7-b15b778ffdb9",
"layout": {
"h": 4,
"w": 6,
"x": 0,
"y": 64,
"i": "f2ee5d32-737c-4095-b6b7-b15b778ffdb9",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(net_bytes_recv{project=~\"$project\", service=~\"$service\", endname=~\"$endname\", interface =~ \"eth0|ens192\" }[1m])*8",
"legend": "{{project}}-{{service}}-{{endname}}-recv",
"refId": "A",
"instant": false
},
{
"expr": "rate(net_bytes_sent{project=~\"$project\", service=~\"$service\", endname=~\"$endname\",interface =~ \"eth0|ens192\" }[1m])*8",
"legend": "{{project}}-{{service}}-{{endname}}-sent",
"refId": "B",
"instant": false
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "网络流量",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "bitsIEC",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "9113323a-98f5-4bff-a8ce-3b459e7e2190",
"layout": {
"h": 4,
"w": 6,
"x": 6,
"y": 64,
"i": "9113323a-98f5-4bff-a8ce-3b459e7e2190",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(net_packets_recv{project=~\"$project\", service=~\"$service\", endname=~\"$endname\",interface =~ \"eth0|ens192\" }[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-recv",
"refId": "A"
},
{
"expr": "rate(net_packets_sent{project=~\"$project\", service=~\"$service\", endname=~\"$endname\",interface =~ \"eth0|ens192\" }[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-sent",
"refId": "B"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "packets",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "05c68ccb-713f-4ccc-b594-82272d2446d5",
"layout": {
"h": 4,
"w": 6,
"x": 12,
"y": 64,
"i": "298f5998-b4c5-4806-85f3-e82f87b66123",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(net_err_in{project=~\"$project\", service=~\"$service\", endname=~\"$endname\",interface =~ \"eth0|ens192\" }[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-{{interface}}-in",
"refId": "A"
},
{
"expr": "rate(net_err_out{project=~\"$project\", service=~\"$service\", endname=~\"$endname\",interface =~ \"eth0|ens192\" }[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-{{interface}}-out",
"refId": "B"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "error",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "4123f4c1-bf8e-400e-b267-8d7f6a92691a",
"layout": {
"h": 4,
"w": 6,
"x": 18,
"y": 64,
"i": "4123f4c1-bf8e-400e-b267-8d7f6a92691a",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "increase(net_drop_in{project=~\"$project\", service=~\"$service\", endname=~\"$endname\" }[30s])",
"legend": "{{project}}-{{service}}-{{endname}}-{{interface}}-in",
"refId": "A"
},
{
"expr": "increase(net_drop_out{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[30s])",
"legend": "{{project}}-{{service}}-{{endname}}-{{interface}}-out",
"refId": "B"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "drop",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "bars",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "cfb80689-de7b-47fb-9155-052b796dd7f5",
"layout": {
"h": 4,
"w": 24,
"x": 0,
"y": 68,
"i": "cfb80689-de7b-47fb-9155-052b796dd7f5",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "netstat_tcp_established{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"refId": "A",
"legend": "{{project}}-{{service}}-{{endname}}-netstat_tcp_established"
},
{
"expr": "netstat_tcp_listen{project=~\"$project\",service=~\"$service\", endname=~\"$endname\" }",
"refId": "B",
"legend": "{{project}}-{{service}}-{{endname}}-netstat_tcp_listen"
},
{
"expr": "netstat_tcp_time_wait{project=~\"$project\",service=~\"$service\", endname=~\"$endname\" }",
"refId": "C",
"legend": "{{project}}-{{service}}-{{endname}}-netstat_tcp_time_wait"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "tcp",
"options": {
"tooltip": {
"mode": "all",
"sort": "none"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "row",
"id": "ecb14b2c-50f1-4c3f-af74-e7b4311be26a",
"name": "TCP状态",
"collapsed": false,
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 72,
"i": "ecb14b2c-50f1-4c3f-af74-e7b4311be26a",
"isResizable": false
}
},
{
"type": "timeseries",
"id": "07ac902a-bd74-4529-81c5-e9ee86963700",
"layout": {
"h": 4,
"w": 6,
"x": 0,
"y": 73,
"i": "e5063a14-3d18-458d-a765-ba39d4f6249b",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(tcp_counter_from_snmp_RtoAlgorithm{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-RtoAlgorithm",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "RtoAlgorithm",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "41bbf233-760f-4802-89cc-f322be138d96",
"layout": {
"h": 4,
"w": 6,
"x": 6,
"y": 73,
"i": "ac2378c3-63a2-4173-91b3-1e6154f226e5",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(tcp_counter_from_snmp_RtoAlgorithm{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-RtoMin",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "RtoMin",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "1372f8e7-db55-4d4c-a139-85582bb65661",
"layout": {
"h": 4,
"w": 6,
"x": 12,
"y": 73,
"i": "1b254eb4-aa71-4dc6-b6c5-d1bf87514c05",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(tcp_counter_from_snmp_RtoMax{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-RtoMax",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "RtoMax",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "6b809752-2cdd-4f96-9fd7-829c1176e3fa",
"layout": {
"h": 4,
"w": 6,
"x": 18,
"y": 73,
"i": "c95fe9fe-7508-4464-b038-817636721ac1",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(tcp_counter_from_snmp_MaxConn{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-MaxConn",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "MaxConn",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "f4d1a774-991d-4b89-94e3-dfeb36462eef",
"layout": {
"h": 4,
"w": 6,
"x": 0,
"y": 77,
"i": "72d26b90-eec6-4db6-b0ac-f81a080b8822",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "increase(tcp_counter_from_snmp_ActiveOpens{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-ActiveOpens",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "ActiveOpens",
"description": "一分钟内新增主动连接请求的数量。",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "d93f609d-d39f-460b-b376-6aba5b9d4b56",
"layout": {
"h": 4,
"w": 6,
"x": 6,
"y": 77,
"i": "2e1f545d-0b03-4a6f-a4c3-aa7ff4292e44",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "increase(tcp_counter_from_snmp_PassiveOpens{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-PassiveOpens",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "PassiveOpens",
"description": "一分钟内被连接的数量。",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "d9cd1480-8cda-4d44-9955-277b3a0c45ba",
"layout": {
"h": 4,
"w": 6,
"x": 12,
"y": 77,
"i": "abdd4674-c579-4521-9b2e-b285e3823981",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(tcp_counter_from_snmp_OutSegs{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-OutSegs",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "OutSegs",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "84a23a44-7e6f-4b7e-9a28-85461ac3589c",
"layout": {
"h": 4,
"w": 6,
"x": 18,
"y": 77,
"i": "0e56e2bf-5b1b-4e1d-9026-005bee28618a",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "increase(tcp_counter_from_snmp_EstabResets{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-EstabResets",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "EstabResets",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "96187005-b684-46e3-8bb6-ec01984726be",
"layout": {
"h": 4,
"w": 6,
"x": 0,
"y": 81,
"i": "4d196151-d35b-4ff1-9e5b-0fcb3325969b",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "tcp_counter_from_snmp_CurrEstab{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}",
"legend": "{{project}}-{{service}}-{{endname}}-CurrEstab",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "CurrEstab",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "1f6636d3-0fb3-4f92-bf9c-7aa7f978c848",
"layout": {
"h": 4,
"w": 6,
"x": 6,
"y": 81,
"i": "38c302ff-7ec6-4571-90d2-be44d0b0f57a",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(tcp_counter_from_snmp_InSegs{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-InSegs",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "InSegs",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "5d95a331-fe8d-4a49-9553-0bf0ac27d0d1",
"layout": {
"h": 4,
"w": 6,
"x": 12,
"y": 81,
"i": "4ba2596a-776c-46e7-8d10-06b191046711",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "increase(tcp_counter_from_snmp_AttemptFails{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-AttemptFails",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "AttemptFails",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "4cc679cc-a6e5-47a6-a0a1-bdbfa1f72120",
"layout": {
"h": 4,
"w": 6,
"x": 18,
"y": 81,
"i": "68022581-6107-4f0f-87e5-7d52420b9a67",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "increase(tcp_counter_from_snmp_RetransSegs{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-RetransSegs",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "RetransSegs",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none",
"min": null,
"max": null,
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "67b415a3-b5ef-4b8f-80ae-7e1df2051964",
"layout": {
"h": 4,
"w": 6,
"x": 0,
"y": 85,
"i": "af404b96-8e9a-4406-aff1-d788ab5f820f",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "increase(tcp_counter_from_snmp_InErrs{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-InErrs",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "InErrs",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "4d345b60-a57a-4ba2-85b4-8e500990f30a",
"layout": {
"h": 4,
"w": 6,
"x": 6,
"y": 85,
"i": "2b14a7a0-a9ef-4f62-8602-d449e3c9c0ba",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "increase(tcp_counter_from_snmp_OutRsts{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-OutRsts",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "OutRsts",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "2b380124-d0a8-497c-a494-440545c2d38b",
"layout": {
"h": 4,
"w": 6,
"x": 12,
"y": 85,
"i": "3096b34b-e8aa-4693-a68e-cb10b3a10a0e",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "increase(tcp_counter_from_snmp_InCsumErrors{project=~\"$project\", service=~\"$service\", endname=~\"$endname\"}[1m])",
"legend": "{{project}}-{{service}}-{{endname}}-InCsumErrors",
"refId": "A"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "InCsumErrors",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none",
"decimals": 0
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
}
],
"var": [
{
"name": "prom",
"type": "datasource",
"definition": "prometheus",
"defaultValue": 1
},
{
"name": "project",
"label": "项目名称",
"type": "query",
"datasource": {
"cate": "prometheus",
"value": "${prom}"
},
"definition": "label_values(system_load1,project)"
},
{
"name": "service",
"label": "服务名称",
"type": "query",
"datasource": {
"cate": "prometheus",
"value": "${prom}"
},
"definition": "label_values(system_load1{project=\"$project\"},service)",
"multi": false
},
{
"name": "endname",
"label": "主机名称",
"type": "query",
"datasource": {
"cate": "prometheus",
"value": "${prom}"
},
"definition": "label_values(system_load1{project=\"$project\",service=\"$service\"},endname)",
"multi": true,
"allOption": true
}
],
"version": "3.0.0"
}
}redis仪表盘
{
"name": "Redis",
"tags": "Redis Prometheus",
"ident": "",
"configs": {
"panels": [
{
"collapsed": true,
"id": "2ecb82c6-4d1a-41b5-8cdc-0284db16bd54",
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 0,
"i": "2ecb82c6-4d1a-41b5-8cdc-0284db16bd54",
"isResizable": false
},
"name": "Basic Info",
"type": "row",
"panels": []
},
{
"type": "barGauge",
"id": "b5acc352-a2bd-4afc-b6cd-d6db0905f807",
"layout": {
"h": 3,
"w": 12,
"x": 0,
"y": 1,
"i": "b5acc352-a2bd-4afc-b6cd-d6db0905f807",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "redis_uptime_in_seconds{ midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_name}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "Redis Uptime",
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "desc"
},
"options": {
"standardOptions": {
"util": "humantimeSeconds"
}
}
},
{
"type": "barGauge",
"id": "716dc7e7-c9ec-4195-93f6-db1c572ae8b0",
"layout": {
"h": 3,
"w": 12,
"x": 12,
"y": 1,
"i": "716dc7e7-c9ec-4195-93f6-db1c572ae8b0",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "redis_used_memory{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_name}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "Memory Used",
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "desc"
},
"options": {
"standardOptions": {}
}
},
{
"type": "barGauge",
"id": "8ccada5e-02f3-4efc-9b36-2a367612e4cb",
"layout": {
"h": 3,
"w": 12,
"x": 0,
"y": 4,
"i": "8ccada5e-02f3-4efc-9b36-2a367612e4cb",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "redis_connected_clients{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"} ",
"legend": "{{midd_project}}-{{midd_name}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "Connected Clients",
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "desc"
},
"options": {
"standardOptions": {}
}
},
{
"type": "barGauge",
"id": "c6948161-db07-42df-beb1-765ee9c071a9",
"layout": {
"h": 3,
"w": 12,
"x": 12,
"y": 7,
"i": "c6948161-db07-42df-beb1-765ee9c071a9",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "redis_maxmemory{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_name}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "Max Memory Limit",
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "desc"
},
"options": {
"standardOptions": {}
}
},
{
"collapsed": true,
"id": "bd54cf4f-1abb-4945-8aab-f89aec16daef",
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 8,
"i": "bd54cf4f-1abb-4945-8aab-f89aec16daef",
"isResizable": false
},
"name": "Commands",
"type": "row",
"panels": []
},
{
"type": "timeseries",
"id": "3d5f8c4e-0ddf-4d68-9f6d-2cc57d864a8e",
"layout": {
"h": 7,
"w": 8,
"x": 0,
"y": 9,
"i": "3d5f8c4e-0ddf-4d68-9f6d-2cc57d864a8e",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(redis_total_commands_processed{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m])",
"legend": "{{midd_project}}-{{midd_name}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "节点每秒执行命令总数",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "344a874d-c34d-4d2d-9bb4-46e0912cd9f5",
"layout": {
"h": 7,
"w": 8,
"x": 8,
"y": 9,
"i": "344a874d-c34d-4d2d-9bb4-46e0912cd9f5",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "irate(redis_keyspace_hits{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m])",
"legend": "{{midd_project}}-{{midd_name}}-hists"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "每秒命中key数量",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "noraml",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "3c83cd35-585c-4070-a210-1f17345f13f4",
"layout": {
"h": 7,
"w": 8,
"x": 16,
"y": 9,
"i": "3c83cd35-585c-4070-a210-1f17345f13f4",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "topk(30, irate(redis_cmdstat_calls{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"} [1m]))",
"legend": "{{midd_project}}-{{midd_name}}-{{command}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "节点执行命令最多的种类及相应数量",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "78ff7266-6124-4088-a047-5fcfd38d78af",
"layout": {
"h": 7,
"w": 8,
"x": 0,
"y": 16,
"i": "11bfce7a-bfd4-4d03-8e80-2ab9a11e2ddb",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "(irate(redis_used_cpu_user{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m]) + irate(redis_used_cpu_sys{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m]))/0.01",
"legend": "{{midd_project}}-{{midd_name}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "The CPU sum usage of sys and user - redis使用cpu百分比（叠加）",
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {
"util": "percent"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "47c6326f-13f0-40b8-8cb8-cff514d81713",
"layout": {
"h": 7,
"w": 8,
"x": 8,
"y": 16,
"i": "496cc017-5963-4f52-87b2-a115d8e64e63",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "irate(redis_keyspace_misses{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m])",
"legend": "{{midd_project}}-{{midd_name}}-misses"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "每秒非命中数量",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "noraml",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"collapsed": true,
"id": "1ea61073-a46d-4d7c-b072-fcdcbc5ac084",
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 23,
"i": "1ea61073-a46d-4d7c-b072-fcdcbc5ac084",
"isResizable": false
},
"name": "Keys",
"type": "row",
"panels": []
},
{
"type": "timeseries",
"id": "b2b4451c-4f8a-438a-8c48-69c95c68361e",
"layout": {
"h": 7,
"w": 8,
"x": 0,
"y": 24,
"i": "b2b4451c-4f8a-438a-8c48-69c95c68361e",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "redis_keyspace_keys{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_name}}-{{db}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "每DB包括的key数量",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "894b9beb-e764-441c-ae04-13e5dbbb901d",
"layout": {
"h": 7,
"w": 8,
"x": 8,
"y": 24,
"i": "894b9beb-e764-441c-ae04-13e5dbbb901d",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "sum(rate(redis_expired_keys{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m])) by (midd_name)",
"legend": "{{midd_project}}-{{midd_name}}-expired"
},
{
"expr": "rate(redis_evicted_keys{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[5m])",
"legend": "{{midd_project}}-{{midd_name}}-evicted"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "节点每秒过期/被驱逐的key数量",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "f721a641-28c7-4e82-a37c-ec17704a0c57",
"layout": {
"h": 7,
"w": 8,
"x": 16,
"y": 24,
"i": "f721a641-28c7-4e82-a37c-ec17704a0c57",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "redis_keyspace_expires{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_name}}-expiring"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "节点过期key数量",
"options": {
"tooltip": {
"mode": "all",
"sort": "none"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "noraml",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "15d53cea-e159-46eb-9f44-94471c3efe3f",
"layout": {
"h": 7,
"w": 8,
"x": 0,
"y": 31,
"i": "488a2c8c-10ae-4a88-a599-84c134b7c1b7",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "redis_keyspace_keys{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"} - redis_keyspace_expires{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_name}}-not expiring"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "节点非过期key数量",
"options": {
"tooltip": {
"mode": "all",
"sort": "none"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "noraml",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"collapsed": true,
"id": "60ff41ed-9d41-40ee-a13b-c968f3ca49d0",
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 38,
"i": "60ff41ed-9d41-40ee-a13b-c968f3ca49d0",
"isResizable": false
},
"name": "Network",
"type": "row",
"panels": []
},
{
"type": "timeseries",
"id": "1841950c-e867-4a62-b846-78754dc0e34d",
"layout": {
"h": 7,
"w": 24,
"x": 0,
"y": 39,
"i": "1841950c-e867-4a62-b846-78754dc0e34d",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(redis_total_net_input_bytes{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m])",
"legend": "{{midd_project}}-{{midd_name}}-input"
},
{
"expr": "rate(redis_total_net_output_bytes{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m])",
"legend": "{{midd_project}}-{{midd_name}}-output"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "Network I/O",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {
"util": "bitsIEC",
"decimals": 2
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "row",
"id": "e982720d-9cf8-41c5-ba26-1753fdb33c0f",
"name": "基本活跃信息",
"collapsed": true,
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 46,
"i": "e982720d-9cf8-41c5-ba26-1753fdb33c0f",
"isResizable": false
}
},
{
"type": "timeseries",
"id": "a1e99987-6c23-4d70-a023-614b09e0f228",
"layout": {
"h": 4,
"w": 8,
"x": 0,
"y": 47,
"i": "a1e99987-6c23-4d70-a023-614b09e0f228",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"refId": "A",
"expr": "redis_connected_clients{midd_project=~\"$midd_project\",midd_type=~\"$midd_type\",midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_name}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "在线客户端数量",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "a5f585e4-0b1a-4294-8d96-6a2ca908d8bf",
"layout": {
"h": 4,
"w": 8,
"x": 8,
"y": 47,
"i": "62787b87-6c16-44f8-be3a-6ceb7f85e56b",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"refId": "A",
"expr": "redis_blocked_clients{midd_project=~\"$midd_project\",midd_type=~\"$midd_type\",midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_name}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "拒绝的客户端连接数量",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "caab5213-eafc-4452-a217-6983fd29173f",
"layout": {
"h": 4,
"w": 8,
"x": 16,
"y": 47,
"i": "28f0db9c-d60d-4189-a463-ddc8d0f44b89",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"refId": "A",
"expr": "redis_master_last_io_seconds_ago{midd_project=~\"$midd_project\",midd_type=~\"$midd_type\",midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_name}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "最后一次与master通信时间",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "64f2d544-c3b4-461b-ac30-4f7de5672ab7",
"layout": {
"h": 4,
"w": 8,
"x": 0,
"y": 51,
"i": "987d3ae0-14c2-4c07-875b-bb11e40633f2",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"refId": "A",
"expr": "redis_connected_slaves{midd_project=~\"$midd_project\",midd_type=~\"$midd_type\",midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_name}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "当前节点连接的slave节点数量",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "none"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
}
],
"var": [
{
"name": "prom",
"type": "datasource",
"definition": "prometheus",
"defaultValue": 1
},
{
"name": "midd_project",
"label": "项目名称",
"type": "query",
"datasource": {
"cate": "prometheus",
"value": "${prom}"
},
"definition": "label_values(redis_uptime_in_seconds, midd_project)",
"multi": true,
"allOption": true
},
{
"name": "midd_type",
"label": "服务类型",
"type": "textbox",
"defaultValue": "redis"
},
{
"name": "midd_name",
"label": "服务节点",
"type": "query",
"datasource": {
"cate": "prometheus",
"value": "${prom}"
},
"definition": "label_values(redis_uptime_in_seconds{midd_project=~\"$midd_project\", midd_type = \"$midd_type\"}, midd_name)",
"multi": true,
"allOption": true
}
],
"version": "3.0.0"
}
}mysql仪表盘
{
"name": "MySQL",
"tags": "Prometheus MySQL",
"ident": "",
"configs": {
"panels": [
{
"collapsed": true,
"id": "fe0e2a5d-4e82-4eaf-b13a-6d98aa6b6860",
"layout": {
"h": 1,
"i": "fe0e2a5d-4e82-4eaf-b13a-6d98aa6b6860",
"isResizable": false,
"w": 24,
"x": 0,
"y": 0
},
"name": "Basic Info",
"type": "row"
},
{
"type": "barGauge",
"id": "80079949-dbff-48fe-a1eb-54b646c30135",
"layout": {
"h": 3,
"i": "80079949-dbff-48fe-a1eb-54b646c30135",
"isResizable": true,
"w": 6,
"x": 0,
"y": 1
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mysql_global_status_uptime{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "MySQL Uptime",
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "desc"
},
"options": {
"standardOptions": {
"util": "humantimeSeconds"
}
}
},
{
"type": "hexbin",
"id": "9fd6dd09-d131-4c0e-88ea-ed62c72baf97",
"layout": {
"h": 3,
"i": "9fd6dd09-d131-4c0e-88ea-ed62c72baf97",
"isResizable": true,
"w": 6,
"x": 6,
"y": 1
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(mysql_global_status_queries{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m])"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "Current QPS",
"description": "mysql_global_status_queries",
"custom": {
"textMode": "valueAndName",
"calc": "lastNotNull",
"colorRange": [
"#83c898",
"#c2c2c2",
"#fc653f"
],
"reverseColorOrder": false,
"colorDomainAuto": true
},
"options": {
"standardOptions": {}
}
},
{
"type": "hexbin",
"id": "24913190-b86d-44b7-a8db-555351d9d3c2",
"layout": {
"h": 3,
"i": "24913190-b86d-44b7-a8db-555351d9d3c2",
"isResizable": true,
"w": 6,
"x": 12,
"y": 1
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mysql_global_variables_innodb_buffer_pool_size{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "InnoDB Buffer Pool",
"description": "**InnoDB Buffer Pool Size**\n\nInnoDB maintains a storage area called the buffer pool for caching data and indexes in memory. Knowing how the InnoDB buffer pool works, and taking advantage of it to keep frequently accessed data in memory, is one of the most important aspects of MySQL tuning. The goal is to keep the working set in memory. In most cases, this should be between 60%-90% of available memory on a dedicated database host, but depends on many factors.",
"custom": {
"textMode": "valueAndName",
"calc": "lastNotNull",
"colorRange": [
"#83c898",
"#c2c2c2",
"#fc653f"
],
"reverseColorOrder": false,
"colorDomainAuto": true
},
"options": {
"standardOptions": {}
}
},
{
"type": "hexbin",
"id": "94a1e97e-2241-4e05-a9e9-a9b1e69d1070",
"layout": {
"h": 3,
"i": "94a1e97e-2241-4e05-a9e9-a9b1e69d1070",
"isResizable": true,
"w": 6,
"x": 18,
"y": 1
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "increase(mysql_global_status_table_locks_waited{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "Table Locks Waited(5min)",
"description": "**Table Locks**\n\nMySQL takes a number of different locks for varying reasons. In this graph we see how many Table level locks MySQL has requested from the storage engine. In the case of InnoDB, many times the locks could actually be row locks as it only takes table level locks in a few specific cases.\n\nIt is most useful to compare Locks Immediate and Locks Waited. If Locks waited is rising, it means you have lock contention. Otherwise, Locks Immediate rising and falling is normal activity.",
"custom": {
"textMode": "valueAndName",
"calc": "lastNotNull",
"colorRange": [
"#83c898",
"#c2c2c2",
"#fc653f"
],
"reverseColorOrder": false,
"colorDomainAuto": true
},
"options": {
"standardOptions": {}
}
},
{
"collapsed": true,
"id": "ca82d30f-8e0d-4caa-8a00-2ed9efe4ad85",
"layout": {
"h": 1,
"i": "ca82d30f-8e0d-4caa-8a00-2ed9efe4ad85",
"isResizable": false,
"w": 24,
"x": 0,
"y": 4
},
"name": "Connections",
"type": "row"
},
{
"type": "timeseries",
"id": "e2c85e72-0286-49bc-8ddb-5fba5f449b53",
"layout": {
"h": 7,
"i": "e2c85e72-0286-49bc-8ddb-5fba5f449b53",
"isResizable": true,
"w": 12,
"x": 0,
"y": 5
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mysql_global_status_threads_connected{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Connections"
},
{
"expr": "mysql_global_status_max_used_connections{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Max Used Connections"
},
{
"expr": "mysql_global_variables_max_connections{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Max Connections"
},
{
"expr": "increase(mysql_global_status_aborted_connects{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Aborted Connections"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "MySQL Connections",
"description": "**Max Connections** \n\nMax Connections is the maximum permitted number of simultaneous client connections. By default, this is 151. Increasing this value increases the number of file descriptors that mysqld requires. If the required number of descriptors are not available, the server reduces the value of Max Connections.\n\nmysqld actually permits Max Connections + 1 clients to connect. The extra connection is reserved for use by accounts that have the SUPER privilege, such as root.\n\nMax Used Connections is the maximum number of connections that have been in use simultaneously since the server started.\n\nConnections is the number of connection attempts (successful or not) to the MySQL server.",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "fbd43ac2-159d-4e55-8bc6-800d1bbfbd59",
"layout": {
"h": 7,
"i": "fbd43ac2-159d-4e55-8bc6-800d1bbfbd59",
"isResizable": true,
"w": 12,
"x": 12,
"y": 5
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mysql_global_status_threads_connected{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}Threads Connected"
},
{
"expr": "mysql_global_status_threads_running{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}Threads Running"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "MySQL Client Thread Activity",
"description": "Threads Connected is the number of open connections, while Threads Running is the number of threads not sleeping.",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"collapsed": true,
"id": "cb81def4-ac63-4d42-b66e-440f9061794b",
"layout": {
"h": 1,
"i": "cb81def4-ac63-4d42-b66e-440f9061794b",
"isResizable": false,
"w": 24,
"x": 0,
"y": 12
},
"name": "Query Performance",
"type": "row"
},
{
"type": "timeseries",
"id": "5fa65a30-a49b-457f-b46a-11d2029188bd",
"layout": {
"h": 7,
"i": "5fa65a30-a49b-457f-b46a-11d2029188bd",
"isResizable": true,
"w": 12,
"x": 0,
"y": 13
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(mysql_global_status_created_tmp_tables{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Created Tmp Tables"
},
{
"expr": "rate(mysql_global_status_created_tmp_disk_tables{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Created Tmp Disk Tables"
},
{
"expr": "rate(mysql_global_status_created_tmp_files{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[5m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Created Tmp Files"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "MySQL Temporary Objects",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.64,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "20efd251-6207-4cec-aa3b-4351e8e9b125",
"layout": {
"h": 7,
"i": "20efd251-6207-4cec-aa3b-4351e8e9b125",
"isResizable": true,
"w": 12,
"x": 12,
"y": 13
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(mysql_global_status_select_full_join{ midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[5m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Select Full Join"
},
{
"expr": "rate(mysql_global_status_select_full_range_join{ midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[5m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Select Full Range Join"
},
{
"expr": "rate(mysql_global_status_select_range{ midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[5m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Select Range"
},
{
"expr": "rate(mysql_global_status_select_range_check{ midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[5m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Select Range Check"
},
{
"expr": "rate(mysql_global_status_select_scan{ midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[5m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Select Scan"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "MySQL Select Types",
"description": "**MySQL Select Types**\n\nAs with most relational databases, selecting based on indexes is more efficient than scanning an entire table's data. Here we see the counters for selects not done with indexes.\n\n* ***Select Scan*** is how many queries caused full table scans, in which all the data in the table had to be read and either discarded or returned.\n* ***Select Range*** is how many queries used a range scan, which means MySQL scanned all rows in a given range.\n* ***Select Full Join*** is the number of joins that are not joined on an index, this is usually a huge performance hit.",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.41,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "a4d0c5fb-04e0-4627-8722-ae996d70e2aa",
"layout": {
"h": 7,
"i": "a4d0c5fb-04e0-4627-8722-ae996d70e2aa",
"isResizable": true,
"w": 12,
"x": 0,
"y": 20
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(mysql_global_status_queries{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "MySQL QPS",
"description": "",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "2e13ada4-1128-440d-9360-028f16c3779b",
"layout": {
"h": 7,
"i": "2e13ada4-1128-440d-9360-028f16c3779b",
"isResizable": true,
"w": 12,
"x": 12,
"y": 20
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "increase(mysql_global_status_slow_queries{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[30s])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Slow Queries"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "MySQL Slow Queries",
"description": "**MySQL Slow Queries**\n\nSlow queries are defined as queries being slower than the long_query_time setting. For example, if you have long_query_time set to 3, all queries that take longer than 3 seconds to complete will show on this graph.",
"options": {
"tooltip": {
"mode": "all",
"sort": "none"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "bars",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.81,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"collapsed": true,
"id": "c9df805c-8ae7-41d7-b28b-575f478fd9ce",
"layout": {
"h": 1,
"i": "c9df805c-8ae7-41d7-b28b-575f478fd9ce",
"isResizable": false,
"w": 24,
"x": 0,
"y": 27
},
"name": "Network",
"type": "row"
},
{
"type": "timeseries",
"id": "6107714f-bedd-437c-b6e4-d6eb74db6d30",
"layout": {
"h": 7,
"i": "6107714f-bedd-437c-b6e4-d6eb74db6d30",
"isResizable": true,
"w": 24,
"x": 0,
"y": 28
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(mysql_global_status_bytes_received{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Inbound"
},
{
"expr": "rate(mysql_global_status_bytes_sent{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Outbound"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "MySQL Network Traffic",
"description": "**MySQL Network Traffic**\n\nHere we can see how much network traffic is generated by MySQL. Outbound is network traffic sent from MySQL and Inbound is network traffic MySQL has received.",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "bytesSI",
"decimals": 2
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"collapsed": true,
"id": "00fd2b70-a133-4ad7-bd56-69a3c91ecf0c",
"layout": {
"h": 1,
"i": "00fd2b70-a133-4ad7-bd56-69a3c91ecf0c",
"isResizable": false,
"w": 24,
"x": 0,
"y": 35
},
"name": "Commands, Handlers",
"type": "row"
},
{
"type": "timeseries",
"id": "f90ca2bc-0809-45f6-88b6-e258805def04",
"layout": {
"h": 7,
"i": "f90ca2bc-0809-45f6-88b6-e258805def04",
"isResizable": true,
"w": 24,
"x": 0,
"y": 36
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "topk(10, rate(mysql_global_status_commands_total{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[1m])>0)",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Com_{{command}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "Top Command Counters",
"description": "**Top Command Counters**\n\nThe Com_{{xxx}} statement counter variables indicate the number of times each xxx statement has been executed. There is one status variable for each type of statement. For example, Com_delete and Com_update count [``DELETE``](https://dev.mysql.com/doc/refman/5.7/en/delete.html) and [``UPDATE``](https://dev.mysql.com/doc/refman/5.7/en/update.html) statements, respectively. Com_delete_multi and Com_update_multi are similar but apply to [``DELETE``](https://dev.mysql.com/doc/refman/5.7/en/delete.html) and [``UPDATE``](https://dev.mysql.com/doc/refman/5.7/en/update.html) statements that use multiple-table syntax.",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"decimals": 2
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.2,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "74e1844d-a918-48fa-a29f-6535dc087dac",
"layout": {
"h": 7,
"i": "74e1844d-a918-48fa-a29f-6535dc087dac",
"isResizable": true,
"w": 12,
"x": 0,
"y": 43
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(mysql_global_status_handlers_total{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", handler!~\"commit|rollback|savepoint.*|prepare\"}[5m])",
"legend": "{{handler}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "MySQL Handlers",
"description": "**MySQL Handlers**\n\nHandler statistics are internal statistics on how MySQL is selecting, updating, inserting, and modifying rows, tables, and indexes.\n\nThis is in fact the layer between the Storage Engine and MySQL.\n\n* `read_rnd_next` is incremented when the server performs a full table scan and this is a counter you don't really want to see with a high value.\n* `read_key` is incremented when a read is done with an index.\n* `read_next` is incremented when the storage engine is asked to 'read the next index entry'. A high value means a lot of index scans are being done.",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"decimals": 3
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "b2c3a13d-898f-407b-b6a9-db852072b12f",
"layout": {
"h": 7,
"i": "b2c3a13d-898f-407b-b6a9-db852072b12f",
"isResizable": true,
"w": 12,
"x": 12,
"y": 43
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(mysql_global_status_handlers_total{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", handler=~\"commit|rollback|savepoint.*|prepare\"}[5m])",
"legend": "{{handler}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "MySQL Transaction Handlers",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"collapsed": true,
"id": "c32a02da-6c61-4b9e-9365-c0b56088fabc",
"layout": {
"h": 1,
"i": "c32a02da-6c61-4b9e-9365-c0b56088fabc",
"isResizable": false,
"w": 24,
"x": 0,
"y": 50
},
"name": "Open Files",
"type": "row"
},
{
"type": "timeseries",
"id": "fc13eadb-890d-4184-ac16-943d54188db8",
"layout": {
"h": 7,
"i": "fc13eadb-890d-4184-ac16-943d54188db8",
"isResizable": true,
"w": 24,
"x": 0,
"y": 51
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mysql_global_variables_open_files_limit{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Open Files Limit"
},
{
"expr": "mysql_global_status_open_files{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Open Files"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "MySQL Open Files",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"collapsed": true,
"id": "6f596e65-3e4b-4d9a-aad7-a32c8c7b8239",
"layout": {
"h": 1,
"i": "6f596e65-3e4b-4d9a-aad7-a32c8c7b8239",
"isResizable": false,
"w": 24,
"x": 0,
"y": 58
},
"name": "Table Openings",
"type": "row"
},
{
"type": "timeseries",
"id": "0b78fbb5-a0b4-4a1b-98b1-af15bc91779d",
"layout": {
"h": 7,
"i": "0b78fbb5-a0b4-4a1b-98b1-af15bc91779d",
"isResizable": true,
"w": 12,
"x": 0,
"y": 59
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "rate(mysql_global_status_table_open_cache_hits{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[5m])\n/\n(\nrate(mysql_global_status_table_open_cache_hits{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[5m])\n+\nrate(mysql_global_status_table_open_cache_misses{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}[5m])\n)",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Table Open Cache Hit Ratio"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "Table Open Cache Hit Ratio Mysql 5.6.6+",
"description": "**MySQL Table Open Cache Status**\n\nThe recommendation is to set the `table_open_cache_instances` to a loose correlation to virtual CPUs, keeping in mind that more instances means the cache is split more times. If you have a cache set to 500 but it has 10 instances, each cache will only have 50 cached.\n\nThe `table_definition_cache` and `table_open_cache` can be left as default as they are auto-sized MySQL 5.6 and above (ie: do not set them to any value).",
"options": {
"tooltip": {
"mode": "all",
"sort": "none"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {
"util": "percentUnit"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "948ad10b-8b22-4d42-9e94-99ef09e12927",
"layout": {
"h": 7,
"i": "948ad10b-8b22-4d42-9e94-99ef09e12927",
"isResizable": true,
"w": 12,
"x": 12,
"y": 59
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"expr": "mysql_global_status_open_tables{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Open Tables"
},
{
"expr": "mysql_global_variables_table_open_cache{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-Table Open Cache"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "MySQL Open Tables",
"description": "**MySQL Open Tables**\n\nThe recommendation is to set the `table_open_cache_instances` to a loose correlation to virtual CPUs, keeping in mind that more instances means the cache is split more times. If you have a cache set to 500 but it has 10 instances, each cache will only have 50 cached.\n\nThe `table_definition_cache` and `table_open_cache` can be left as default as they are auto-sized MySQL 5.6 and above (ie: do not set them to any value).",
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "hidden"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "smooth",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
}
],
"var": [
{
"definition": "prometheus",
"name": "prom",
"type": "datasource"
},
{
"name": "midd_project",
"label": "项目名称",
"type": "query",
"datasource": {
"cate": "prometheus",
"value": "${prom}"
},
"definition": "label_values(midd_project)"
},
{
"name": "midd_type",
"label": "中间件类型",
"type": "textbox",
"defaultValue": "mysql"
},
{
"name": "midd_name",
"label": "节点实例",
"type": "query",
"datasource": {
"cate": "prometheus",
"value": "${prom}"
},
"definition": "label_values(mysql_up{midd_project=\"$midd_project\",midd_type=\"$midd_type\"},midd_name)",
"multi": true,
"allOption": true
},
{
"name": "midd_version",
"label": "软件版本",
"type": "query",
"datasource": {
"cate": "prometheus",
"value": "${prom}"
},
"definition": "label_values(mysql_up{midd_project=\"$midd_project\",midd_type=\"$midd_type\"},version)",
"multi": true
}
],
"version": "3.0.0"
}
}容器仪表盘
{
"name": "Container",
"tags": "",
"ident": "",
"configs": {
"version": "3.0.0",
"links": [],
"var": [
{
"name": "prom",
"label": "数据源",
"type": "datasource",
"definition": "prometheus",
"defaultValue": 1
},
{
"name": "midd_project",
"label": "项目名称",
"type": "query",
"datasource": {
"cate": "prometheus",
"value": "${prom}"
},
"definition": "label_values(docker_container_cpu_usage_total, midd_project)",
"reg": "",
"multi": true,
"allOption": true,
"allValue": ".*"
},
{
"name": "midd_type",
"label": "服务类型",
"type": "textbox",
"defaultValue": "container"
},
{
"name": "midd_name",
"label": "服务节点",
"type": "query",
"datasource": {
"cate": "prometheus",
"value": "${prom}"
},
"definition": "label_values(docker_container_cpu_usage_total{midd_project=~\"$midd_project\", midd_type = \"$midd_type\"}, midd_name)",
"reg": "",
"multi": true,
"allOption": true,
"allValue": ".*"
},
{
"name": "container_image",
"label": "镜像名称",
"type": "query",
"datasource": {
"cate": "prometheus",
"value": "${prom}"
},
"definition": "label_values(docker_container_cpu_usage_total{midd_project=~\"$midd_project\", midd_type = \"$midd_type\", midd_name=\"$midd_name\"}, container_image)",
"reg": "",
"multi": true,
"allOption": true,
"allValue": ".*"
}
],
"panels": [
{
"type": "row",
"id": "38ee9504-730e-40b0-9e89-999a0e59188d",
"name": "一、总览",
"collapsed": true,
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 0,
"i": "38ee9504-730e-40b0-9e89-999a0e59188d",
"isResizable": false
},
"panels": []
},
{
"type": "stat",
"id": "7e594608-2428-470b-a4fb-8df405df56a6",
"layout": {
"h": 3,
"w": 4,
"x": 0,
"y": 1,
"i": "a448bfe3-badc-406a-803f-f59907b45cce",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"refId": "A",
"expr": "sum(docker_n_containers{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"})",
"legend": ""
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "当前节点承载的容器数量",
"links": [],
"custom": {
"textMode": "value",
"colorMode": "value",
"calc": "min",
"valueField": "Value",
"colSpan": 1,
"textSize": {}
},
"options": {
"valueMappings": [
{
"options": {
"match": "null",
"result": {
"text": "N/A"
}
},
"type": "special"
}
],
"standardOptions": {
"util": "none"
},
"thresholds": {
"steps": [
{
"color": "#73BF69",
"value": null,
"type": "base"
},
{
"color": "#F2495C",
"value": 80
}
]
}
}
},
{
"type": "barGauge",
"id": "4f2a7bbd-9dff-4817-a212-3ea7e270895c",
"layout": {
"h": 6,
"w": 20,
"x": 4,
"y": 1,
"i": "1967ffc8-4f6c-4e3e-a69c-94c37597d6f6",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"refId": "A",
"expr": "docker_container_status_uptime{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-{{container_image}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "容器运行时长排行榜",
"links": [],
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "asc"
},
"options": {
"standardOptions": {
"util": "seconds"
}
}
},
{
"type": "stat",
"id": "071da60c-40c7-4047-8edd-24ed86fd98d1",
"layout": {
"h": 3,
"w": 4,
"x": 0,
"y": 4,
"i": "33e8d734-eb58-430e-ba26-5d3d4a01f79f",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"refId": "A",
"expr": "sum(docker_n_containers_running{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"})",
"legend": ""
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "当前节点正在运行的容器数量",
"links": [],
"custom": {
"textMode": "value",
"colorMode": "value",
"calc": "min",
"valueField": "Value",
"colSpan": 1,
"textSize": {}
},
"options": {
"valueMappings": [
{
"options": {
"match": "null",
"result": {
"text": "N/A"
}
},
"type": "special"
}
],
"standardOptions": {
"util": "none"
},
"thresholds": {
"steps": [
{
"color": "#73BF69",
"value": null,
"type": "base"
},
{
"color": "#F2495C",
"value": 80
}
]
}
}
},
{
"type": "stat",
"id": "becfde69-32f5-4ce6-af45-32191f7b25d3",
"layout": {
"h": 3,
"w": 4,
"x": 0,
"y": 7,
"i": "6c50d764-a461-48a8-ac9c-5fe8ad7db2f3",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"refId": "A",
"expr": "sum(docker_n_containers_stopped{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"})",
"legend": ""
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "当前节点停止运行的容器数量",
"links": [],
"custom": {
"textMode": "value",
"colorMode": "value",
"calc": "min",
"valueField": "Value",
"colSpan": 1,
"textSize": {}
},
"options": {
"valueMappings": [
{
"options": {
"match": "null",
"result": {
"text": "N/A"
}
},
"type": "special"
}
],
"standardOptions": {
"util": "none"
},
"thresholds": {
"steps": [
{
"color": "#73BF69",
"value": null,
"type": "base"
},
{
"color": "#F2495C",
"value": 1
}
]
}
}
},
{
"type": "barGauge",
"id": "c38b68e9-e58a-41d3-94a6-c22aeb26445c",
"layout": {
"h": 6,
"w": 20,
"x": 4,
"y": 7,
"i": "5a24034b-86bb-4bcf-9391-69cb7505af39",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"refId": "A",
"expr": "docker_n_containers_stopped{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"} > 0",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-{{container_image}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "当前暂停容器节点数量排行榜",
"links": [],
"custom": {
"calc": "lastNotNull",
"baseColor": "#9470FF",
"serieWidth": 20,
"sortOrder": "asc"
},
"options": {
"standardOptions": {
"util": "none"
}
}
},
{
"type": "stat",
"id": "4d4f3c50-b14b-45d3-aeb7-afddb87eca32",
"layout": {
"h": 3,
"w": 4,
"x": 0,
"y": 10,
"i": "212b557b-84c2-4ffe-8d55-a85d404e7e6f",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": "${prom}",
"targets": [
{
"refId": "A",
"expr": "sum(docker_n_containers_paused{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\"})",
"legend": ""
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "当前节点暂停的容器数量",
"links": [],
"custom": {
"textMode": "value",
"colorMode": "value",
"calc": "min",
"valueField": "Value",
"colSpan": 1,
"textSize": {}
},
"options": {
"valueMappings": [
{
"options": {
"match": "null",
"result": {
"text": "N/A"
}
},
"type": "special"
}
],
"standardOptions": {
"util": "none"
},
"thresholds": {
"steps": [
{
"color": "#73BF69",
"value": null,
"type": "base"
},
{
"color": "#F2495C",
"value": 1
}
]
}
}
},
{
"type": "row",
"id": "c56eef30-6444-464f-9512-267fa06c57df",
"name": "二、CPU",
"collapsed": true,
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 25,
"i": "c56eef30-6444-464f-9512-267fa06c57df",
"isResizable": false
}
},
{
"type": "timeseries",
"id": "8e245ba7-a608-47db-ac24-5413430dfa0e",
"layout": {
"h": 6,
"w": 8,
"x": 0,
"y": 26,
"i": "8e245ba7-a608-47db-ac24-5413430dfa0e",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": 1,
"targets": [
{
"refId": "C",
"expr": "docker_container_cpu_usage_percent{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", container_image=~\"$container_image\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-{{container_image}}",
"instant": false
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "总的CPU使用率",
"links": [],
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {
"util": "percent",
"max": 400
},
"thresholds": {
"steps": [
{
"color": "#73BF69",
"value": null,
"type": "base"
},
{
"color": "#F2495C",
"value": 100
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "linear",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.3,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "254b110a-57da-4e10-888b-ea564dfbc7d5",
"layout": {
"h": 6,
"w": 8,
"x": 8,
"y": 26,
"i": "875c6be9-3798-4d28-b8ef-d3df68b04698",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": 1,
"targets": [
{
"refId": "C",
"expr": "rate(docker_container_cpu_usage_in_kernelmode{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", container_image=~\"$container_image\"}[1m])/rate(docker_container_cpu_usage_total{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", container_image=~\"$container_image\"}[1m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-{{container_image}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "内核态CPU使用率",
"links": [],
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {
"util": "none",
"max": 120
},
"thresholds": {
"steps": [
{
"color": "#73BF69",
"value": null,
"type": "base"
},
{
"color": "#F2495C",
"value": 80
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "linear",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.3,
"gradientMode": "none",
"stack": "noraml",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "3fadfed6-a123-4c4d-b51c-92247e03587d",
"layout": {
"h": 6,
"w": 8,
"x": 16,
"y": 26,
"i": "f12ba4ae-fad6-4fda-94fa-eda14917aac3",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": 1,
"targets": [
{
"refId": "C",
"expr": "rate(docker_container_cpu_usage_in_usermode{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", container_image=~\"$container_image\"}[1m])/rate(docker_container_cpu_usage_total{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", container_image=~\"$container_image\"}[1m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-{{container_image}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "用户态CPU使用率",
"links": [],
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {
"util": "none",
"max": 120
},
"thresholds": {
"steps": [
{
"color": "#73BF69",
"value": null,
"type": "base"
},
{
"color": "#F2495C",
"value": 80
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "linear",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.3,
"gradientMode": "none",
"stack": "noraml",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "row",
"id": "2a2f2a92-f014-4494-a962-8e1d6702bd62",
"name": "三、内存",
"collapsed": true,
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 32,
"i": "2a2f2a92-f014-4494-a962-8e1d6702bd62",
"isResizable": false
},
"panels": []
},
{
"type": "timeseries",
"id": "4f387f1b-5fc9-4aed-b711-a79846ace5a1",
"layout": {
"h": 6,
"w": 12,
"x": 0,
"y": 33,
"i": "4f387f1b-5fc9-4aed-b711-a79846ace5a1",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": 1,
"targets": [
{
"refId": "A",
"expr": "docker_container_mem_usage_percent{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", container_image=~\"$container_image\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-{{container_image}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "总的内存使用率",
"links": [],
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "linear",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "b5c301ea-f19d-473b-9da7-9957124751e5",
"layout": {
"h": 6,
"w": 12,
"x": 12,
"y": 33,
"i": "8db1250a-c0af-4ba4-b804-5b3f7bd672fe",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": 1,
"targets": [
{
"refId": "A",
"expr": "docker_container_mem_total_rss{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", container_image=~\"$container_image\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-{{container_image}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "使用真实内存总量",
"links": [],
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "linear",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "0855c42c-dcc0-4d35-93ef-486f52fbe349",
"layout": {
"h": 6,
"w": 12,
"x": 0,
"y": 39,
"i": "35325cf6-375c-4223-ab1d-ee42269fff84",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": 1,
"targets": [
{
"refId": "A",
"expr": "docker_container_mem_fail_count{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", container_image=~\"$container_image\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-{{container_image}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "失败的内存数量",
"links": [],
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "linear",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "de788617-8366-4322-997d-d3febca7539a",
"layout": {
"h": 6,
"w": 12,
"x": 12,
"y": 39,
"i": "402cbf2b-41f7-4b91-b103-47975aa9d85a",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": 1,
"targets": [
{
"refId": "A",
"expr": "docker_container_mem_total_cache{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", container_image=~\"$container_image\"}",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-{{container_image}}"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "使用缓存内存总量",
"links": [],
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "asc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "linear",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "row",
"id": "1ed340ba-82e6-4e22-87bf-81e8f46af8eb",
"name": "四、网络",
"collapsed": true,
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 45,
"i": "1ed340ba-82e6-4e22-87bf-81e8f46af8eb",
"isResizable": false
},
"panels": []
},
{
"type": "timeseries",
"id": "9b10a7e3-73df-4c76-8b82-8adb281cc4d6",
"layout": {
"h": 6,
"w": 12,
"x": 0,
"y": 46,
"i": "e3ebbfbb-bfe1-4c78-95bf-fa1db31de6f1",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": 1,
"targets": [
{
"refId": "A",
"expr": "rate(docker_container_net_rx_bytes{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", container_image=~\"$container_image\"}[1m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-{{container_image}}-RECEIVED"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "入流量字节数",
"links": [],
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {
"util": "bitsSI"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "linear",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "c778cb12-f813-493d-8939-55d046fe7e9c",
"layout": {
"h": 6,
"w": 12,
"x": 12,
"y": 46,
"i": "3146af48-9852-4dca-a573-295c89811484",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": 1,
"targets": [
{
"refId": "A",
"expr": "rate(docker_container_net_tx_bytes{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", container_image=~\"$container_image\"}[1m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-{{container_image}}-TRANSFER"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "出流量字节数",
"links": [],
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {
"util": "bitsSI"
},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "linear",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "28c89bf8-87fe-4be3-ac69-9d6c2d73bb00",
"layout": {
"h": 6,
"w": 12,
"x": 0,
"y": 52,
"i": "a44c1ba6-e299-461f-847e-0aaab1d95649",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": 1,
"targets": [
{
"refId": "A",
"expr": "rate(docker_container_net_rx_dropped{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", container_image=~\"$container_image\"}[1m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-{{container_image}}-RECEIVED"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "入流量丢包数",
"links": [],
"maxPerRow": 4,
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "linear",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "off",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "ea62da4d-f61e-4df2-a2ed-164c6982a5d2",
"layout": {
"h": 6,
"w": 12,
"x": 12,
"y": 52,
"i": "7a11082e-a702-48f1-9eb5-06be71c5e37a",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": 1,
"targets": [
{
"refId": "A",
"expr": "rate(docker_container_net_tx_dropped{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", container_image=~\"$container_image\"}[1m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-{{container_image}}-TRANSFER"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "出流量丢包数",
"links": [],
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "linear",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "noraml",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "ceb3bde4-8e03-488b-b818-e393e5ad2522",
"layout": {
"h": 6,
"w": 12,
"x": 0,
"y": 58,
"i": "23ece3e8-fce8-4385-8fcb-49a7915cdb19",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": 1,
"targets": [
{
"refId": "A",
"expr": "rate(docker_container_net_rx_errors{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", container_image=~\"$container_image\"}[1m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-{{container_image}}-RECEIVED"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "入流量错误数",
"links": [],
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "linear",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "noraml",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "timeseries",
"id": "2cb2f141-eba5-42c7-8f55-e83f14cf3a66",
"layout": {
"h": 6,
"w": 12,
"x": 12,
"y": 58,
"i": "b5b05a5f-fe51-4a35-beb5-d55882ee7ae4",
"isResizable": true
},
"version": "3.0.0",
"datasourceCate": "prometheus",
"datasourceValue": 1,
"targets": [
{
"refId": "A",
"expr": "rate(docker_container_net_tx_errors{midd_project=~\"$midd_project\", midd_type=~\"$midd_type\", midd_name=~\"$midd_name\", container_image=~\"$container_image\"}[1m])",
"legend": "{{midd_project}}-{{midd_type}}-{{midd_name}}-{{container_image}}-TRANSFER"
}
],
"transformations": [
{
"id": "organize",
"options": {}
}
],
"name": "出流量错误数",
"links": [],
"options": {
"tooltip": {
"mode": "all",
"sort": "desc"
},
"legend": {
"displayMode": "list",
"placement": "bottom"
},
"standardOptions": {},
"thresholds": {
"steps": [
{
"color": "#634CD9",
"value": null,
"type": "base"
}
]
}
},
"custom": {
"drawStyle": "lines",
"lineInterpolation": "linear",
"spanNulls": false,
"lineWidth": 1,
"fillOpacity": 0.5,
"gradientMode": "none",
"stack": "noraml",
"scaleDistribution": {
"type": "linear"
}
}
},
{
"type": "row",
"id": "b80b6c94-3007-4efb-b7a5-4b99b1241cad",
"name": "五、硬盘",
"collapsed": true,
"layout": {
"h": 1,
"w": 24,
"x": 0,
"y": 64,
"i": "b80b6c94-3007-4efb-b7a5-4b99b1241cad",
"isResizable": false
}
}
]
}
}

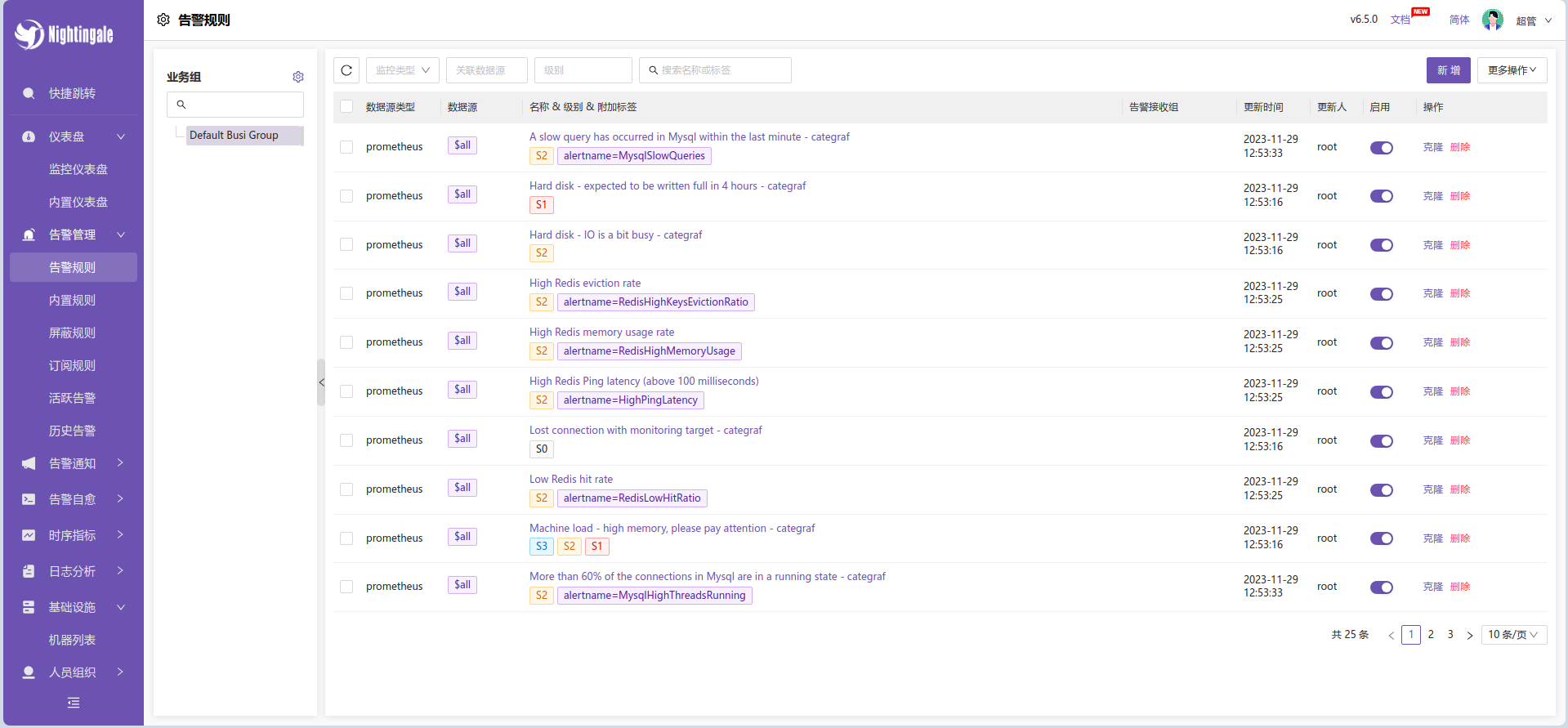

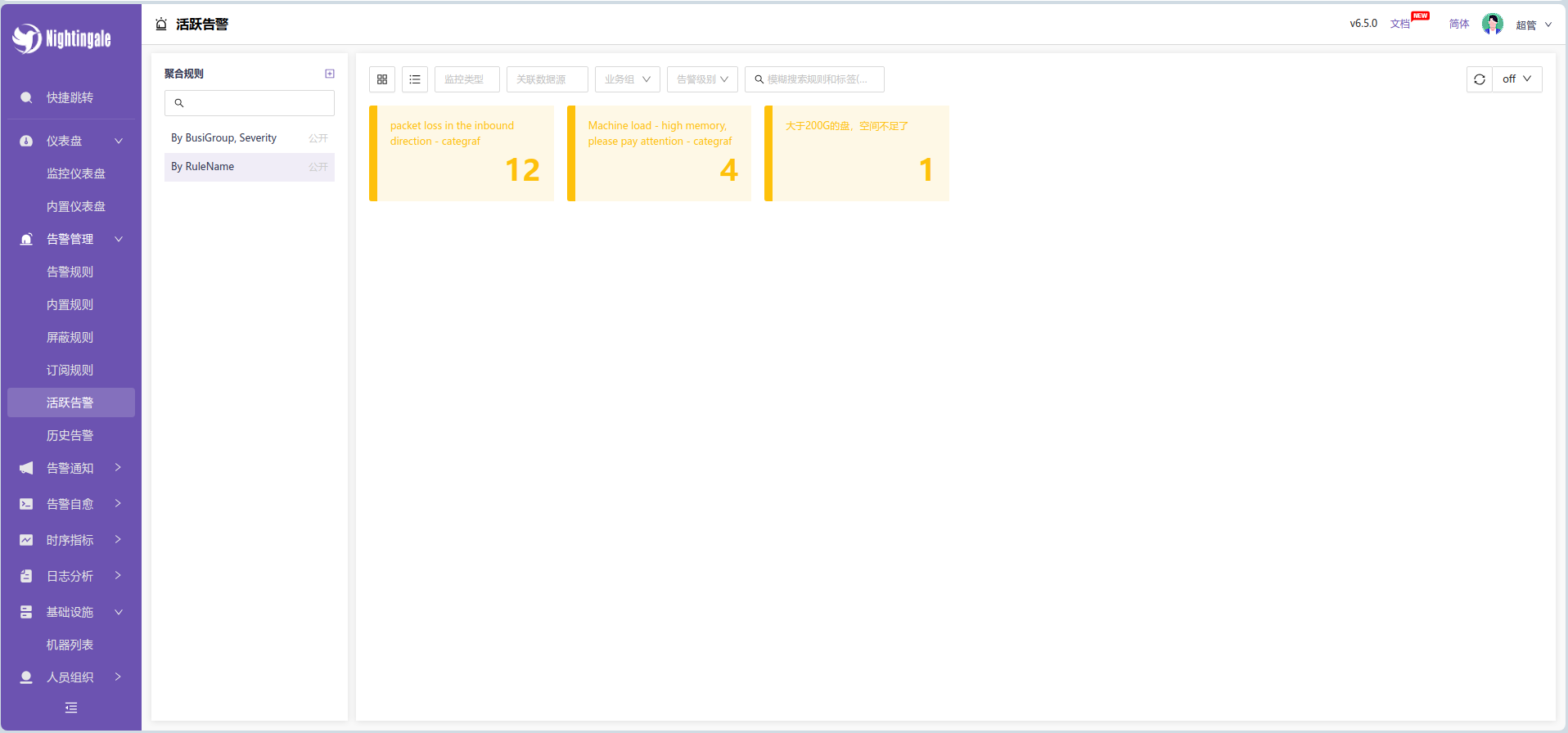

五、增加告警配置
linux_by_categraf
[
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "Hard disk - expected to be written full in 4 hours - categraf",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 1,
"severities": [
1
],
"disabled": 1,
"prom_for_duration": 60,
"prom_ql": "predict_linear(disk_free[1h], 4*3600) < 0",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "predict_linear(disk_free[1h], 4*3600) < 0",
"severity": 1
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "",
"enable_stimes": [
"00:00"
],
"enable_etime": "",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": null,
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [
"email",
"dingtalk",
"wecom"
],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "Linux",
"__group__": "linux_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "Hard disk - IO is a bit busy - categraf",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 2,
"severities": [
2
],
"disabled": 0,
"prom_for_duration": 60,
"prom_ql": "rate(diskio_io_time[1m])/10 > 99",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "rate(diskio_io_time[1m])/10 > 99",
"severity": 2
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "",
"enable_stimes": [
"00:00"
],
"enable_etime": "",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": null,
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [
"email",
"dingtalk",
"wecom"
],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "Linux",
"__group__": "linux_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "Lost connection with monitoring target - categraf",
"note": "",
"prod": "host",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 0,
"severities": [
0
],
"disabled": 0,
"prom_for_duration": 0,
"prom_ql": "",
"rule_config": {
"inhibit": false,
"queries": [
{
"key": "all_hosts",
"op": "==",
"values": []
}
],
"triggers": [
{
"duration": 60,
"severity": 2,
"type": "target_miss"
}
]
},
"prom_eval_interval": 15,
"enable_stime": "",
"enable_stimes": [
"00:00"
],
"enable_etime": "",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": null,
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [],
"annotations": {},
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "Linux",
"__group__": "linux_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "Machine load - high memory, please pay attention - categraf",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 0,
"severities": [
3,
2,
1
],
"disabled": 0,
"prom_for_duration": 60,
"prom_ql": "",
"rule_config": {
"inhibit": true,
"queries": [
{
"prom_ql": "mem_available_percent < 25",
"severity": 3
},
{
"prom_ql": "mem_available_percent < 15",
"severity": 2
},
{
"prom_ql": "mem_available_percent < 5",
"severity": 1
}
]
},
"prom_eval_interval": 15,
"enable_stime": "",
"enable_stimes": [
"00:00"
],
"enable_etime": "",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": null,
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [
"email",
"dingtalk",
"wecom"
],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [],
"annotations": {},
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "Linux",
"__group__": "linux_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "number of TME_WAIT exceeds 20,000 - categraf",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 2,
"severities": [
2
],
"disabled": 0,
"prom_for_duration": 60,
"prom_ql": "netstat_tcp_time_wait > 20000",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "netstat_tcp_time_wait > 20000",
"severity": 2
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "",
"enable_stimes": [
"00:00"
],
"enable_etime": "",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": null,
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [
"email",
"dingtalk",
"wecom"
],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "Linux",
"__group__": "linux_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "packet loss in the inbound direction - categraf",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 3,
"severities": [
3
],
"disabled": 0,
"prom_for_duration": 60,
"prom_ql": "increase(net_drop_in[1m]) > 0",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "increase(net_drop_in[1m]) > 0",
"severity": 3
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "",
"enable_stimes": [
"00:00"
],
"enable_etime": "",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": null,
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [
"email",
"dingtalk",
"wecom"
],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "Linux",
"__group__": "linux_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "packet loss in the outbound direction - categraf",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 3,
"severities": [
3
],
"disabled": 0,
"prom_for_duration": 60,
"prom_ql": "increase(net_drop_out[1m]) > 0",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "increase(net_drop_out[1m]) > 0",
"severity": 3
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "",
"enable_stimes": [
"00:00"
],
"enable_etime": "",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": null,
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [
"email",
"dingtalk",
"wecom"
],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "Linux",
"__group__": "linux_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "大于200G的盘，空间不足了",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 0,
"severities": [
3,
2,
1
],
"disabled": 0,
"prom_for_duration": 60,
"prom_ql": "",
"rule_config": {
"inhibit": true,
"queries": [
{
"prom_ql": "disk_free/1024/1024/1024 < 20 and disk_total/1024/1024/1024 >= 200",
"severity": 3
},
{
"prom_ql": "disk_free/1024/1024/1024 < 10 and disk_total/1024/1024/1024 >= 200",
"severity": 2
},
{
"prom_ql": "disk_free/1024/1024/1024 < 2 and disk_total/1024/1024/1024 >= 200",
"severity": 1
}
]
},
"prom_eval_interval": 30,
"enable_stime": "",
"enable_stimes": [
"00:00"
],
"enable_etime": "",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": null,
"enable_days_of_weeks": [
[
"0",
"1",
"2",
"3",
"4",
"5",
"6"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [],
"annotations": {},
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "Linux",
"__group__": "linux_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "小于200G的盘，空间不足了",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 0,
"severities": [
3,
2,
1
],
"disabled": 0,
"prom_for_duration": 60,
"prom_ql": "",
"rule_config": {
"inhibit": true,
"queries": [
{
"prom_ql": "disk_used_percent > 90 and disk_total/1024/1024/1024 < 200",
"severity": 3
},
{
"prom_ql": "disk_used_percent > 95 and disk_total/1024/1024/1024 < 200",
"severity": 2
},
{
"prom_ql": "disk_used_percent > 99 and disk_total/1024/1024/1024 < 200",
"severity": 1
}
]
},
"prom_eval_interval": 30,
"enable_stime": "",
"enable_stimes": [
"00:00"
],
"enable_etime": "",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": null,
"enable_days_of_weeks": [
[
"0",
"1",
"2",
"3",
"4",
"5",
"6"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [],
"annotations": {},
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "Linux",
"__group__": "linux_by_categraf"
}
]redis_by_categraf
[
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "High Redis eviction rate",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 2,
"severities": [
2
],
"disabled": 1,
"prom_for_duration": 60,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "(sum(rate(redis_evicted_keys[5m])) / sum(redis_keyspace_keys)) > 0.1",
"severity": 2
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=RedisHighKeysEvictionRatio"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "Redis",
"__group__": "redis_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "High Redis memory usage rate",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 2,
"severities": [
2
],
"disabled": 1,
"prom_for_duration": 60,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "redis_maxmemory > 0 and (redis_used_memory / redis_maxmemory) > 0.85",
"severity": 2
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=RedisHighMemoryUsage"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "Redis",
"__group__": "redis_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "High Redis Ping latency (above 100 milliseconds)",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 2,
"severities": [
2
],
"disabled": 1,
"prom_for_duration": 60,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "redis_ping_use_seconds > 0.1",
"severity": 2
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=HighPingLatency"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "Redis",
"__group__": "redis_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "Low Redis hit rate",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 2,
"severities": [
2
],
"disabled": 1,
"prom_for_duration": 60,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "rate(redis_keyspace_hits[5m])\n/\n(rate(redis_keyspace_misses[5m]) + rate(redis_keyspace_hits[5m]))\n< 0.9",
"severity": 2
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=RedisLowHitRatio"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "Redis",
"__group__": "redis_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "Redis connection refused",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 2,
"severities": [
2
],
"disabled": 1,
"prom_for_duration": 0,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "(rate(redis_rejected_connections[5m])) > 0",
"severity": 2
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=RedisRejectedConnHigh"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "Redis",
"__group__": "redis_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "Redis has just been restarted, please be aware",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 3,
"severities": [
3
],
"disabled": 1,
"prom_for_duration": 0,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "redis_uptime_in_seconds < 600",
"severity": 3
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=RedisLowUptime"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "Redis",
"__group__": "redis_by_categraf"
}
]mysql_by_categraf
[
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "A slow query has occurred in Mysql within the last minute - categraf",
"note": "MySQL server mysql has some new slow query",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 2,
"severities": [
2
],
"disabled": 1,
"prom_for_duration": 120,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "increase(mysql_global_status_slow_queries[1m]) > 0",
"severity": 2
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=MysqlSlowQueries"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "MySQL",
"__group__": "mysql_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "More than 60% of the connections in Mysql are in a running state - categraf",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 2,
"severities": [
2
],
"disabled": 1,
"prom_for_duration": 120,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "avg by (instance) (mysql_global_status_threads_running) / avg by (instance) (mysql_global_variables_max_connections) * 100 > 60",
"severity": 2
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=MysqlHighThreadsRunning"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "MySQL",
"__group__": "mysql_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "Mysql has just restarted. Please be advised - categraf",
"note": "MySQL has just been restarted, less than one minute ago",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 3,
"severities": [
3
],
"disabled": 1,
"prom_for_duration": 0,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "mysql_global_status_uptime < 60",
"severity": 3
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=MysqlRestarted"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "MySQL",
"__group__": "mysql_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "Mysql has opened a large number of file handles. Please be aware - categraf",
"note": "More than 80% of MySQL files open",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 2,
"severities": [
2
],
"disabled": 1,
"prom_for_duration": 120,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "avg by (instance) (mysql_global_status_open_files) / avg by (instance)(mysql_global_variables_open_files_limit) * 100 > 80",
"severity": 2
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=MysqlHighOpenFiles"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "MySQL",
"__group__": "mysql_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "Mysql instance has crashed - categraf",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 1,
"severities": [
1
],
"disabled": 1,
"prom_for_duration": 0,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "mysql_up == 0",
"severity": 1
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=MysqlDown"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "MySQL",
"__group__": "mysql_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "MysqlInnodbLogWaits - categraf",
"note": "MySQL innodb log writes stalling",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 2,
"severities": [
2
],
"disabled": 1,
"prom_for_duration": 0,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "rate(mysql_global_status_innodb_log_waits[15m]) > 10",
"severity": 2
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=MysqlInnodbLogWaits"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "MySQL",
"__group__": "mysql_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "MysqlSlaveIoThreadNotRunning - categraf",
"note": "MySQL Slave IO thread not running",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 1,
"severities": [
1
],
"disabled": 1,
"prom_for_duration": 0,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "mysql_slave_status_master_server_id > 0 and ON (instance) mysql_slave_status_slave_io_running == 0",
"severity": 1
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=MysqlSlaveIoThreadNotRunning"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "MySQL",
"__group__": "mysql_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "MysqlSlaveReplicationLag - categraf",
"note": "",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 1,
"severities": [
1
],
"disabled": 1,
"prom_for_duration": 60,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "mysql_slave_status_master_server_id > 0 and ON (instance) (mysql_slave_status_seconds_behind_master - mysql_slave_status_sql_delay) > 30",
"severity": 1
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=MysqlSlaveReplicationLag"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "MySQL",
"__group__": "mysql_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "MysqlSlaveSqlThreadNotRunning - categraf",
"note": "MySQL Slave SQL thread not running",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 1,
"severities": [
1
],
"disabled": 1,
"prom_for_duration": 0,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "mysql_slave_status_master_server_id > 0 and ON (instance) mysql_slave_status_slave_sql_running == 0",
"severity": 1
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=MysqlSlaveSqlThreadNotRunning"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "MySQL",
"__group__": "mysql_by_categraf"
},
{
"id": 0,
"group_id": 0,
"cate": "prometheus",
"datasource_ids": [
0
],
"cluster": "",
"name": "The number of connections in Mysql has exceeded 80% - categraf",
"note": "More than 80% of MySQL connections are in use",
"prod": "metric",
"algorithm": "",
"algo_params": null,
"delay": 0,
"severity": 2,
"severities": [
2
],
"disabled": 1,
"prom_for_duration": 120,
"prom_ql": "",
"rule_config": {
"algo_params": null,
"inhibit": false,
"prom_ql": "",
"queries": [
{
"prom_ql": "avg by (instance) (mysql_global_status_threads_connected) / avg by (instance) (mysql_global_variables_max_connections) * 100 > 80",
"severity": 2
}
],
"severity": 0
},
"prom_eval_interval": 15,
"enable_stime": "00:00",
"enable_stimes": [
"00:00"
],
"enable_etime": "23:59",
"enable_etimes": [
"23:59"
],
"enable_days_of_week": [
"1",
"2",
"3",
"4",
"5",
"6",
"0"
],
"enable_days_of_weeks": [
[
"1",
"2",
"3",
"4",
"5",
"6",
"0"
]
],
"enable_in_bg": 0,
"notify_recovered": 1,
"notify_channels": [],
"notify_groups_obj": null,
"notify_groups": null,
"notify_repeat_step": 60,
"notify_max_number": 0,
"recover_duration": 0,
"callbacks": [],
"runbook_url": "",
"append_tags": [
"alertname=MysqlTooManyConnections"
],
"annotations": null,
"extra_config": null,
"create_at": 0,
"create_by": "",
"update_at": 0,
"update_by": "",
"__cate__": "MySQL",
"__group__": "mysql_by_categraf"
}
]
